Blind Flange Ductile Iron BLUCAST PN10/PN16 DN50-DN600

  Data Sheet |   Product Range

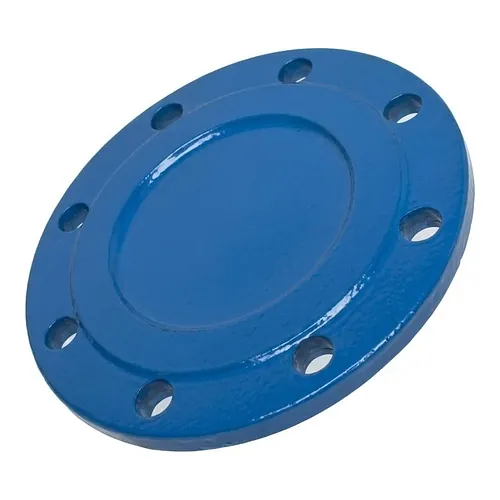

The BLUCAST Series X blind flange is a ductile iron end closure used to blank off a flanged outlet, a reserved branch or the end of a spool piece in drinking water, irrigation and utility mains. The plate is cast in EN-GJS-500-7 ductile iron and supplied from DN50 to DN600, with drilling covering both PN10 and PN16 bolt patterns, so a single component serves the two pressure classes most common in buried and above-ground water networks.

Maximum working pressure is 16 bar and the working temperature range is 0 to 80 degrees, which covers potable water and neutral liquids. Corrosion protection follows the BLUCAST factory standard: powder epoxy applied to a minimum thickness of 250 microns in RAL 5015 on the manufacturer's own automatic dip coating lines, WRAS-approved for contact with drinking water. The flange is a solid plate with no moving parts and no retention zones, so once bolted up it remains maintenance free for the service life of the line.

• Material: EN-GJS-500-7 ductile iron
• Size range: DN50 to DN600
• Pressure: PN10/PN16 drilling, 16 bar maximum working pressure
• Temperature: 0 to 80 degrees
• Coating: powder epoxy, minimum 250 microns, RAL 5015, WRAS approved
• Warranty: 7 years

Typical duties include closing future connection points on distribution manifolds and chamber pipework, isolating a branch during staged commissioning, and sealing off sections for pressure testing. Installation is by through-bolting against the mating flange with a flat gasket and a bolt set matched to the counter flange drilling; no welding or site machining is required.

BLUCAST products carry CE marking and a 7-year manufacturer quality warranty, with production covered by ISO 9001:2015 and ISO 14001:2015. Diameters up to DN600 are held as ready-to-go stock at the factory. BigWeld is an authorised Blucast dealer and supplies the complete DN50-DN600 blind flange range.
