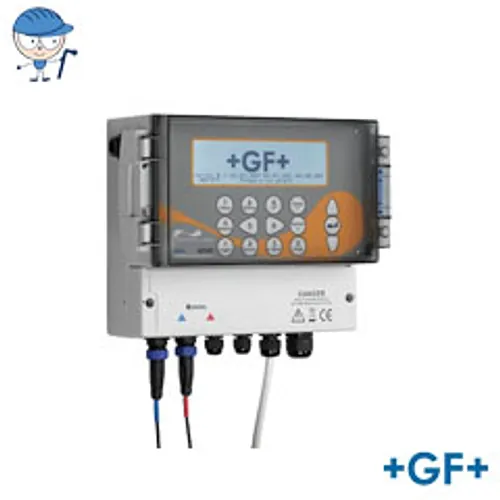

Ultraflow U3000 Ultrasonic Flow Sensor DN13-2000
The Ultraflow U3000 ultrasonic flow sensor delivers precise, non-invasive volumetric flow measurement for liquid media across industrial, municipal, and process piping systems. Designed for external clamp-on transit-time detection on pipe diameters from 13 mm to 2000 mm, this instrument operates without line shutdowns, pressure drops, or fluid contact. BigWeld supplies this high-performance monitoring device across European industrial networks to equip engineers and plant operators with reliable flow tracking.
Technical specifications
Operating on the acoustic transit-time differential method, the Ultraflow U3000 measures fluid velocities from 0.1 m/s to 20 m/s across diverse piping materials. The instrument incorporates integrated electronics with dual outputs to enable straightforward supervisory integration in process cabinets.
The integrated digital display and user interface allow configuration directly on site via front-panel programming keys. Output options and electrical specifications include:
- Pipe diameter coverage: DN13 to DN2000 (external pipe wall diameter from 13 mm to 2000 mm)
- Flow velocity measuring range: 0.1 m/s to 20 m/s with continuous bidirectional capability
- Signal outputs: Active 4-wire 4-20 mA analog output and configurable pulse output for batching and totalisation
- Power supply range: Universal compatibility for 12 to 24 V AC/DC and 110 to 230 V AC supplies
- Measurement technology: Clamp-on transit-time ultrasonic sensing without internal fluid contact
- User interface: High-visibility digital readout with front navigation buttons for direct setup
Applications
The non-intrusive sensor architecture is suitable for aggressive chemical dosing lines, treated utility water, and heavy industrial transfer loops where mechanical sensors cannot be immersed. It ensures long-term operational reliability across municipal water treatment, cooling systems, and process facilities.
Because the sensor elements never contact the process fluid, the system eliminates risks of chemical erosion, fouling, and hydraulic head loss. This makes the unit ideal for hazardous acids, caustic reagents, demineralised water, wastewater loops, and agricultural irrigation feeds. Compatible pipe substrates include thermoplastics such as PVC-U, PVC-C, PP-H, and PEHD, alongside metallic conduits fabricated from carbon steel or stainless steel, maintaining total fluid containment and system hygiene.
Installation and jointing
Mechanical clamp-on mounting eliminates the need for pipe cutting, line draining, or structural modifications to existing infrastructure. Transducers mount directly to the pipe exterior using the supplied rigid guide rail and secure clamping hardware.
Commissioning and maintenance are performed completely dry, allowing plant operators to retrofit flow monitoring onto live pipelines without interrupting flow regimes or compromising production schedules. The transducer rail ensures precise alignment and stable acoustic coupling over the operational life of the installation. Signal and power connections route directly to standard industrial enclosures, simplifying field wiring for automation systems.
The Ultraflow U3000 ultrasonic flow sensor delivers precise, non-invasive volumetric flow measurement for liquid media across industrial, municipal, and process piping systems. Designed for external clamp-on transit-time detection on pipe diameters from 13 mm to 2000 mm, this instrument operates without line shutdowns, pressure drops, or fluid contact. BigWeld supplies this high-performance monitoring device across European industrial networks to equip engineers and plant operators with reliable flow tracking.
Technical specifications
Operating on the acoustic transit-time differential method, the Ultraflow U3000 measures fluid velocities from 0.1 m/s to 20 m/s across diverse piping materials. The instrument incorporates integrated electronics with dual outputs to enable straightforward supervisory integration in process cabinets.
The integrated digital display and user interface allow configuration directly on site via front-panel programming keys. Output options and electrical specifications include:
- Pipe diameter coverage: DN13 to DN2000 (external pipe wall diameter from 13 mm to 2000 mm)
- Flow velocity measuring range: 0.1 m/s to 20 m/s with continuous bidirectional capability
- Signal outputs: Active 4-wire 4-20 mA analog output and configurable pulse output for batching and totalisation
- Power supply range: Universal compatibility for 12 to 24 V AC/DC and 110 to 230 V AC supplies
- Measurement technology: Clamp-on transit-time ultrasonic sensing without internal fluid contact
- User interface: High-visibility digital readout with front navigation buttons for direct setup
Applications
The non-intrusive sensor architecture is suitable for aggressive chemical dosing lines, treated utility water, and heavy industrial transfer loops where mechanical sensors cannot be immersed. It ensures long-term operational reliability across municipal water treatment, cooling systems, and process facilities.
Because the sensor elements never contact the process fluid, the system eliminates risks of chemical erosion, fouling, and hydraulic head loss. This makes the unit ideal for hazardous acids, caustic reagents, demineralised water, wastewater loops, and agricultural irrigation feeds. Compatible pipe substrates include thermoplastics such as PVC-U, PVC-C, PP-H, and PEHD, alongside metallic conduits fabricated from carbon steel or stainless steel, maintaining total fluid containment and system hygiene.
Installation and jointing
Mechanical clamp-on mounting eliminates the need for pipe cutting, line draining, or structural modifications to existing infrastructure. Transducers mount directly to the pipe exterior using the supplied rigid guide rail and secure clamping hardware.
Commissioning and maintenance are performed completely dry, allowing plant operators to retrofit flow monitoring onto live pipelines without interrupting flow regimes or compromising production schedules. The transducer rail ensures precise alignment and stable acoustic coupling over the operational life of the installation. Signal and power connections route directly to standard industrial enclosures, simplifying field wiring for automation systems.
