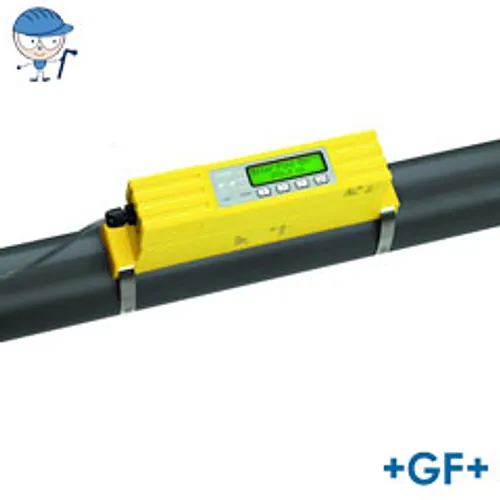

GF+ compact clamp-on flow sensor with digital display mounted on a pipe.

U1000 Ultrasonic Clamp-on Flow Sensor d25-115 mm

  Datasheet (PDF)

The U1000 clamp-on ultrasonic flow sensor measures volumetric flow from outside the pipe, for industrial piping networks with outer diameters from d25 mm to d115 mm. Built for permanent external mounting on plastic and metal pipes, it covers a velocity range of 0.1 to 10 m/s and provides an active 4-20 mA analog output, a pulse signal and 12-24 V AC/DC supply.

Technical specifications

The sensor works on the ultrasonic transit-time principle, deriving liquid velocity through the pipe wall, and combines integrated signal processing electronics, a local digital display and two independent output paths for automated control loops.

  • Measuring principle: differential transit-time ultrasonic measurement
  • Pipe size range: outer diameter d25 mm to d115 mm
  • Flow velocity range: 0.1 to 10 m/s, laminar and turbulent regimes
  • Signal outputs: 4-wire active 4-20 mA analog plus configurable pulse output
  • Power supply: 12 to 24 V AC/DC
  • Local interface: integrated backlit digital display with programming keypad

Because the design has no moving mechanical components, there is no mechanical wear, no head loss and no fouling or clogging of the measuring point. Operational accuracy is stated for clean process fluids.

Applications

The U1000 is intended for permanent flow monitoring on plastic and metal process lines within the d25-115 mm range, where the pipe must stay closed and in service during metering.

The active 4-20 mA output sends instantaneous flow rate to supervisory SCADA systems, programmable logic controllers or local indicators, while the pulse output handles precise batching and volume totalization. The local display and tactile keys let field personnel read instantaneous flow, accumulated volume and diagnostic parameters directly at the measuring point. External measurement eliminates line cutting, system shutdown and any contamination of the process liquid.

Installation and jointing

Installation is fully non-invasive and carried out entirely on the pipe exterior, without drilling, cutting or interrupting the flow of the fluid.

The guide rail and transducer assembly are clamped directly onto the outer pipe wall with dedicated mechanical clamping hardware, so no welded, bonded or threaded joint is created on the process line and no leak path is introduced at the measuring point. Commissioning takes only a few minutes and requires no specialized tooling and no mechanical modification of the pipe.

  Datasheet (PDF)

The U1000 clamp-on ultrasonic flow sensor measures volumetric flow from outside the pipe, for industrial piping networks with outer diameters from d25 mm to d115 mm. Built for permanent external mounting on plastic and metal pipes, it covers a velocity range of 0.1 to 10 m/s and provides an active 4-20 mA analog output, a pulse signal and 12-24 V AC/DC supply.

Technical specifications

The sensor works on the ultrasonic transit-time principle, deriving liquid velocity through the pipe wall, and combines integrated signal processing electronics, a local digital display and two independent output paths for automated control loops.

  • Measuring principle: differential transit-time ultrasonic measurement
  • Pipe size range: outer diameter d25 mm to d115 mm
  • Flow velocity range: 0.1 to 10 m/s, laminar and turbulent regimes
  • Signal outputs: 4-wire active 4-20 mA analog plus configurable pulse output
  • Power supply: 12 to 24 V AC/DC
  • Local interface: integrated backlit digital display with programming keypad

Because the design has no moving mechanical components, there is no mechanical wear, no head loss and no fouling or clogging of the measuring point. Operational accuracy is stated for clean process fluids.

Applications

The U1000 is intended for permanent flow monitoring on plastic and metal process lines within the d25-115 mm range, where the pipe must stay closed and in service during metering.

The active 4-20 mA output sends instantaneous flow rate to supervisory SCADA systems, programmable logic controllers or local indicators, while the pulse output handles precise batching and volume totalization. The local display and tactile keys let field personnel read instantaneous flow, accumulated volume and diagnostic parameters directly at the measuring point. External measurement eliminates line cutting, system shutdown and any contamination of the process liquid.

Installation and jointing

Installation is fully non-invasive and carried out entirely on the pipe exterior, without drilling, cutting or interrupting the flow of the fluid.

The guide rail and transducer assembly are clamped directly onto the outer pipe wall with dedicated mechanical clamping hardware, so no welded, bonded or threaded joint is created on the process line and no leak path is introduced at the measuring point. Commissioning takes only a few minutes and requires no specialized tooling and no mechanical modification of the pipe.
