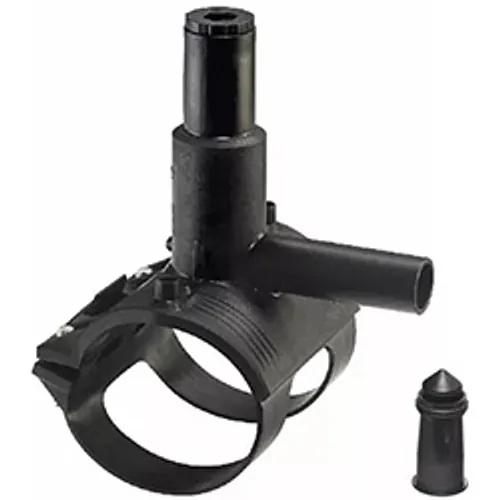

Black monobloc PE100 tapping saddle with Gas Stop mechanism and integrated clamping strap

Tapping saddle monobloc PE100 with Gas Stop d63-160mm 1-5 bar

Material: Polyethylene PN: 1-5 Bar SDR: 11 Rotatable: 360°

  Datasheet (PDF) |   Product Range | Instructional Video

The ELGEF Plus monobloc tapping saddle with integrated Gas Stop from Georg Fischer is engineered for live gas distribution branch connections under pressure. Designed for main pipe diameters d63 to 160 mm with SDR 11 rating, this fitting enables gas utility teams to create reliable service lines without interrupting network operation. BigWeld supplies this saddle as an authorised Georg Fischer distributor for gas infrastructure projects.

Technical specifications

This monobloc tapping saddle integrates a factory-fitted Gas Stop excess flow valve engineered for natural gas mains operating between 1 and 5 bar. The unit features an integrated mechanical cutter and a 360-degree rotatable outlet to simplify branch alignment on site.

  • Main pipe diameter range: d63 to d160 mm (SDR 11 fitting, pipe SDR 9 to 17.6)
  • Branch outlet dimensions: spigot d20 mm or d32 mm
  • Operating pressure rating: 1 to 5 bar for gas distribution networks
  • Gas Stop safety cartridge: pre-assembled GS 20/1 or GS 32/1 with 25 to 100 m³/h capacity
  • Electrofusion welding: 4 mm connector pins with limited-path fusion indicators

Materials and standards

Moulded exclusively from 100% virgin PE100 black resin approved by the PE100+ Association, the saddle provides exceptional resistance to crack propagation and chemical degradation. It is certified according to European gas utility standards for an estimated service lifetime of 100 years.

The raw material exhibits a density of approximately 0.95 g/cm³, a yield stress of 25 N/mm² and a tensile modulus of elasticity of 900 N/mm² at 23 degrees. Factory quality control adheres to ISO 9001 and ISO 14001, while international certifications include DVGW, KIWA, SVGW and FM approval under FM 1613, ensuring rigorous safety compliance in underground gas infrastructure.

Installation and jointing

Installation combines single-cycle electrofusion with under-pressure tapping via the integrated cutter. The monobloc lower saddle half clamps directly around the prepared polyethylene main, allowing fast alignment and secure electrofusion welding.

Welding parameters are monitored through 4 mm terminal pins, while integrated limited-path fusion indicators give clear visual confirmation of joint completion. Once fusion and cooling phases are completed, an installer operates the mechanical cutter through the threaded top cap to penetrate the pressurised pipe wall without gas leakage. The sealing cap with internal elastomeric O-ring is retightened to form a gas-tight closure, and the long spigot outlet is electrofused to the service line using standard ELGEF Plus couplers.

  Datasheet (PDF) |   Product Range | Instructional Video

The ELGEF Plus monobloc tapping saddle with integrated Gas Stop from Georg Fischer is engineered for live gas distribution branch connections under pressure. Designed for main pipe diameters d63 to 160 mm with SDR 11 rating, this fitting enables gas utility teams to create reliable service lines without interrupting network operation. BigWeld supplies this saddle as an authorised Georg Fischer distributor for gas infrastructure projects.

Technical specifications

This monobloc tapping saddle integrates a factory-fitted Gas Stop excess flow valve engineered for natural gas mains operating between 1 and 5 bar. The unit features an integrated mechanical cutter and a 360-degree rotatable outlet to simplify branch alignment on site.

  • Main pipe diameter range: d63 to d160 mm (SDR 11 fitting, pipe SDR 9 to 17.6)
  • Branch outlet dimensions: spigot d20 mm or d32 mm
  • Operating pressure rating: 1 to 5 bar for gas distribution networks
  • Gas Stop safety cartridge: pre-assembled GS 20/1 or GS 32/1 with 25 to 100 m³/h capacity
  • Electrofusion welding: 4 mm connector pins with limited-path fusion indicators

Materials and standards

Moulded exclusively from 100% virgin PE100 black resin approved by the PE100+ Association, the saddle provides exceptional resistance to crack propagation and chemical degradation. It is certified according to European gas utility standards for an estimated service lifetime of 100 years.

The raw material exhibits a density of approximately 0.95 g/cm³, a yield stress of 25 N/mm² and a tensile modulus of elasticity of 900 N/mm² at 23 degrees. Factory quality control adheres to ISO 9001 and ISO 14001, while international certifications include DVGW, KIWA, SVGW and FM approval under FM 1613, ensuring rigorous safety compliance in underground gas infrastructure.

Installation and jointing

Installation combines single-cycle electrofusion with under-pressure tapping via the integrated cutter. The monobloc lower saddle half clamps directly around the prepared polyethylene main, allowing fast alignment and secure electrofusion welding.

Welding parameters are monitored through 4 mm terminal pins, while integrated limited-path fusion indicators give clear visual confirmation of joint completion. Once fusion and cooling phases are completed, an installer operates the mechanical cutter through the threaded top cap to penetrate the pressurised pipe wall without gas leakage. The sealing cap with internal elastomeric O-ring is retightened to form a gas-tight closure, and the long spigot outlet is electrofused to the service line using standard ELGEF Plus couplers.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
D 63 mm
193130432
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €160.14
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
D 63 mm
193130434
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €180.14
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
D 90 mm
193130452
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €157.72
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
D 90 mm
193130454
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €176.60
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
D 110 mm
193130462
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €166.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
D 110 mm
193130464
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €185.48
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
D 125 mm
193130472
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €180.02
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
D 125 mm
193130474
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €198.90
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
D 160 mm
193130492
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €223.57
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
D 160 mm
193130494
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €242.45
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 193130432
D: 20 mm
D: 63 mm
Ships in 24 hours
€160.14 / pcs
SKU: 193130434
D: 32 mm
D: 63 mm
Ships in 24 hours
€180.14 / pcs
SKU: 193130452
D: 20 mm
D: 90 mm
Ships in 24 hours
€157.72 / pcs
SKU: 193130454
D: 32 mm
D: 90 mm
Ships in 24 hours
€176.60 / pcs
SKU: 193130462
D: 20 mm
D: 110 mm
Ships in 24 hours
€166.62 / pcs
SKU: 193130464
D: 32 mm
D: 110 mm
Ships in 24 hours
€185.48 / pcs
SKU: 193130472
D: 20 mm
D: 125 mm
Ships in 24 hours
€180.02 / pcs
SKU: 193130474
D: 32 mm
D: 125 mm
Ships in 24 hours
€198.90 / pcs
SKU: 193130492
D: 20 mm
D: 160 mm
Ships in 24 hours
€223.57 / pcs
SKU: 193130494
D: 32 mm
D: 160 mm
Ships in 24 hours
€242.45 / pcs
