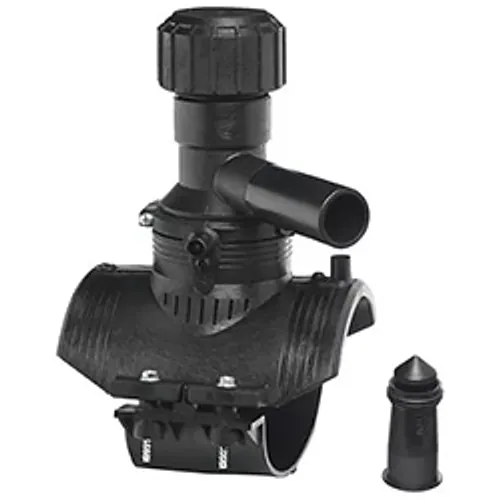

Black PE100 monobloc tapping saddle with Gas Stop cartridge on white background

Tapping saddle monobloc PE100 with Gas Stop d63-250mm 0.2-5 bar

Material: Polyethylene PN: 0.2 - 5 Bar SDR: 11 Rotatable: 360°

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus PE100 monobloc tapping saddle with integrated Gas-Stop is engineered for live under-pressure branch connections on natural gas distribution mains. Designed for gas utility networks, it accommodates main pipe diameters from d63 mm to d250 mm and features a 360 degrees rotatable spigot outlet in d32 mm or d63 mm, allowing field alignment in any direction without repositioning the saddle body.

Technical specifications

This monobloc tapping tee incorporates an integrated safety shut-off mechanism that protects downstream pipework during catastrophic ruptures or line damage. The pre-assembled cartridge closes instantly under excess flow conditions while maintaining controlled re-pressurisation functionality.

  • Operating pressure range: 0.2 to 5 bar gas (200 mbar to 5 bar)
  • Main pipe compatibility: d63 mm to d250 mm (pipe classes SDR 9 to SDR 26)
  • Branch outlet: d32 mm or d63 mm spigot, 360 degrees rotatable
  • Safety shut-off: Pipelife Gas-Stop Type S with overflow orifice
  • Maximum flow capacity: up to 3,000 l/min with automatic excess flow cut-off
  • Electrofusion interface: 4 mm connector pins with limited-path fusion indicators

Materials and standards

Moulded exclusively from 100% virgin PE100 resin in RAL 9005 black, this fitting provides outstanding resistance to environmental stress cracking and mechanical soil loading in buried utility installations. The raw material complies fully with the strict quality standards of the PE100+ Association.

Manufactured by Georg Fischer (GF Piping Systems), the ELGEF Plus system meets EN 1555-3 gas distribution standards and holds certifications from DVGW, SVGW, and KIWA, alongside quality management standards ISO 9001, ISO 14001, and accredited laboratory testing under ISO/IEC 17025. Each unit carries permanent embossed barcodes and batch tracking markings for complete traceability, designed for a 100-year utility service life.

Installation and jointing

The integrated tapping cutter allows clean, swarf-free penetration of the main pipe under live working pressure without any gas leakage to the surrounding atmosphere. Top and bottom mechanical travel limit stops guarantee precise blade travel and prevent accidental over-drilling.

Electrofusion welding is executed via standard 4 mm connector pins, providing instant visual confirmation through integrated limited-path fusion indicators. The extended spigot outlet offers ample clamping space for electrofusion couplers or butt fusion equipment, simplifying downstream installation. Supplied across Europe by BigWeld, an authorised Georg Fischer distributor, this monobloc electrofusion fitting ensures maximum network integrity.
