Diaphragm valve PVDF type 514 d20-d63 PN10

Diaphragm valve PVDF type 514 d20-d63 PN10

Material: PVDF PN: 10 Bar

  Datasheet (PDF)

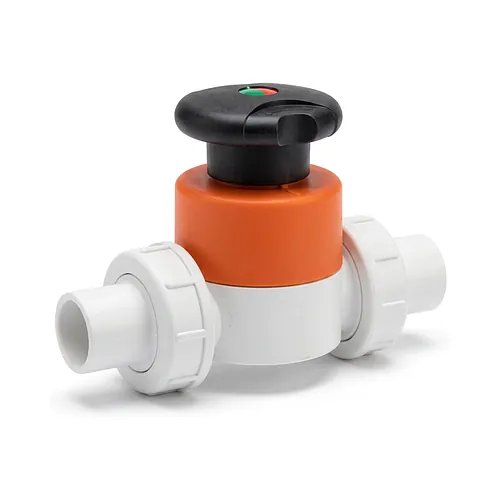

The Georg Fischer SYGEF Standard diaphragm valve type 514 is an engineered flow-control solution designed for precise throttling, regulation, and isolation of aggressive industrial chemicals and high-purity fluids. Rated for a nominal pressure of PN10 and working temperatures from -20 degrees to +140 degrees Celsius, this manual valve provides exceptional chemical durability and contamination-free conveyance across process lines from d20 to d63 mm (DN15 to DN50).

Technical specifications

The type 514 diaphragm valve features an optimized internal body geometry providing up to double the flow coefficient of previous generations, significantly lowering pressure drops. Actuation is controlled through an ergonomic manual handwheel with an integrated locking mechanism to secure setpoints against accidental tampering.

  • Nominal pressure rating: PN10 (10 bar at 20 degrees Celsius)
  • Operating temperature range: -20 degrees to +140 degrees Celsius
  • Size range: metric spigots d20 to d63 mm (DN15 to DN50)
  • Actuation: manual handwheel with built-in setpoint locking device
  • Body design: central housing nut for fast radial maintenance without line stress
  • Diaphragm construction: dual-layer PTFE face with resilient elastomeric backing

Materials and standards

Manufactured from unpigmented polyvinylidene fluoride (PVDF), the valve body delivers outstanding mechanical strength and resistance to halogens, concentrated acids, and organic solvents. The fluid barrier incorporates a PTFE diaphragm backed by EPDM or FKM, ensuring zero metal contact with the process media.

The component conforms to ISO 10931 dimensional and performance requirements and EN 558 face-to-face standards. Wetted fluoropolymer surfaces meet FDA 21 CFR regulations and USP Class VI biocompatibility criteria, making the valve fully compliant for deionized water, pharmaceutical, and high-purity chemical processes. PVDF is not resistant to strong basic solutions such as concentrated sodium hydroxide.

Installation and jointing

The valve is engineered with metric butt fusion spigots for seamless integration into industrial PVDF piping systems using automated fusion methods. Its compact installation length and radial assembly design allow rapid inspection and servicing without spreading the adjacent pipework.

Jointing can be performed using non-contact infrared IR Plus welding per DVS 2207-6, bead and crevice-free BCF Plus fusion for sanitary lines, or conventional heated-tool butt welding according to DVS 2207-15. Proper axial alignment and calibrated support clamps should be used to protect the valve body from excessive piping stress during thermal cycling.

  Datasheet (PDF)

The Georg Fischer SYGEF Standard diaphragm valve type 514 is an engineered flow-control solution designed for precise throttling, regulation, and isolation of aggressive industrial chemicals and high-purity fluids. Rated for a nominal pressure of PN10 and working temperatures from -20 degrees to +140 degrees Celsius, this manual valve provides exceptional chemical durability and contamination-free conveyance across process lines from d20 to d63 mm (DN15 to DN50).

Technical specifications

The type 514 diaphragm valve features an optimized internal body geometry providing up to double the flow coefficient of previous generations, significantly lowering pressure drops. Actuation is controlled through an ergonomic manual handwheel with an integrated locking mechanism to secure setpoints against accidental tampering.

  • Nominal pressure rating: PN10 (10 bar at 20 degrees Celsius)
  • Operating temperature range: -20 degrees to +140 degrees Celsius
  • Size range: metric spigots d20 to d63 mm (DN15 to DN50)
  • Actuation: manual handwheel with built-in setpoint locking device
  • Body design: central housing nut for fast radial maintenance without line stress
  • Diaphragm construction: dual-layer PTFE face with resilient elastomeric backing

Materials and standards

Manufactured from unpigmented polyvinylidene fluoride (PVDF), the valve body delivers outstanding mechanical strength and resistance to halogens, concentrated acids, and organic solvents. The fluid barrier incorporates a PTFE diaphragm backed by EPDM or FKM, ensuring zero metal contact with the process media.

The component conforms to ISO 10931 dimensional and performance requirements and EN 558 face-to-face standards. Wetted fluoropolymer surfaces meet FDA 21 CFR regulations and USP Class VI biocompatibility criteria, making the valve fully compliant for deionized water, pharmaceutical, and high-purity chemical processes. PVDF is not resistant to strong basic solutions such as concentrated sodium hydroxide.

Installation and jointing

The valve is engineered with metric butt fusion spigots for seamless integration into industrial PVDF piping systems using automated fusion methods. Its compact installation length and radial assembly design allow rapid inspection and servicing without spreading the adjacent pipework.

Jointing can be performed using non-contact infrared IR Plus welding per DVS 2207-6, bead and crevice-free BCF Plus fusion for sanitary lines, or conventional heated-tool butt welding according to DVS 2207-15. Proper axial alignment and calibrated support clamps should be used to protect the valve body from excessive piping stress during thermal cycling.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
185514132
Material: PVDF
PN: 10 Bar
pcs €355.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
185514133
Material: PVDF
PN: 10 Bar
pcs €398.22
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
185514134
Material: PVDF
PN: 10 Bar
pcs €495.48
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
185514135
Material: PVDF
PN: 10 Bar
pcs €608.16
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
185514136
Material: PVDF
PN: 10 Bar
pcs €781.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
185514137
Material: PVDF
PN: 10 Bar
pcs €991.28
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 185514132
D: 20 mm
Ships in 24 hours
€355.73 / pcs
SKU: 185514133
D: 25 mm
Ships in 24 hours
€398.22 / pcs
SKU: 185514134
D: 32 mm
Ships in 24 hours
€495.48 / pcs
SKU: 185514135
D: 40 mm
Ships in 24 hours
€608.16 / pcs
SKU: 185514136
D: 50 mm
Ships in 24 hours
€781.64 / pcs
SKU: 185514137
D: 63 mm
Ships in 24 hours
€991.28 / pcs
