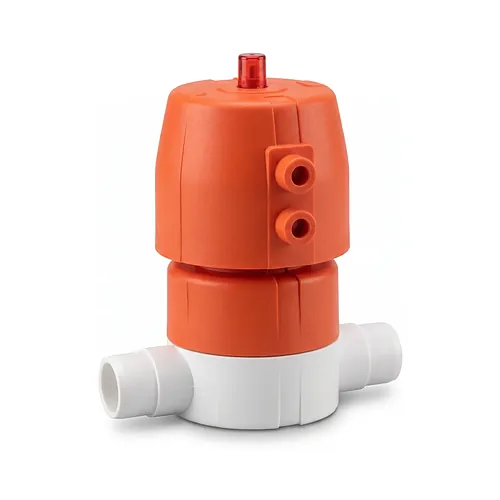

Diaphragm valve DIASTAR Ten DA PVDF d20-63mm

Diaphragm valve DIASTAR Ten DA PVDF d20-63mm

Material: PVDF

  Datasheet (PDF)

The Georg Fischer SYGEF Standard DIASTAR Ten pneumatic diaphragm valve with double-acting (DA) actuation and metric socket fusion spigots delivers reliable media isolation and precise throttling for aggressive industrial fluid systems. Designed for metric pipe diameters from d20 to d63 mm, this unpigmented PVDF valve platform pairs high chemical resistance with an optimized internal profile, maintaining process integrity across demanding chemical processing, water deionization, and microelectronics installations.

Technical specifications

The DIASTAR Ten DA utilizes compressed air across both opening and closing strokes to deliver balanced cycle dynamics without internal mechanical spring fatigue. Its hydraulic geometry conforms to EN 558 face-to-face dimensions while lowering pressure drop across the entire flow path.

Key operating parameters and mechanical features include:

  • Actuator mode: Pneumatic double-acting (DA) operation with 90-degree rotatable control air ports
  • Diaphragm design: PTFE and EPDM sealing boundary compressed by a central housing nut
  • Temperature range: Continuous operating capability from -20 degrees Celsius to 140 degrees Celsius
  • Flow optimization: Streamlined body contour delivering up to double the flow rate of legacy designs
  • Process connections: Metric socket fusion spigots for pipeline sizes d20 to d63 mm

Materials and standards

Manufactured from virgin Polyvinylidene Fluoride (PVDF), the valve body provides robust containment against strong oxidizing acids, halogens, and high-purity deionized water. The design adheres strictly to international chemical piping and hygiene criteria.

The component complies with dimensional standard ISO 10931 and face-to-face standard EN 558. Contact surfaces conform to FDA 21 CFR § 177.2510 and USP Class VI physiological safety requirements, featuring an inner surface roughness of Ra 0.5 micrometers or smoother to prevent media contamination and particle accumulation. Note that PVDF is not suitable for strong inorganic bases such as concentrated sodium hydroxide or organic amines.

Installation and jointing

Connecting the valve into process loops is accomplished via metric socket fusion in accordance with DVS 2207 Part 15 guidelines. The socket spigot ends enable direct thermal fusion into matching SYGEF PVDF fittings, creating homogeneous, leak-tight joints resistant to hot water sanitization, steam, and ozone exposure.

The central union housing nut permits rapid diaphragm inspection or service without dismantling surrounding piping or imposing uneven mechanical stress on the valve bonnet. Furthermore, the 90-degree indexable pneumatic supply ports simplify air line routing in tight skid enclosures and modular manifold racks.

  Datasheet (PDF)

The Georg Fischer SYGEF Standard DIASTAR Ten pneumatic diaphragm valve with double-acting (DA) actuation and metric socket fusion spigots delivers reliable media isolation and precise throttling for aggressive industrial fluid systems. Designed for metric pipe diameters from d20 to d63 mm, this unpigmented PVDF valve platform pairs high chemical resistance with an optimized internal profile, maintaining process integrity across demanding chemical processing, water deionization, and microelectronics installations.

Technical specifications

The DIASTAR Ten DA utilizes compressed air across both opening and closing strokes to deliver balanced cycle dynamics without internal mechanical spring fatigue. Its hydraulic geometry conforms to EN 558 face-to-face dimensions while lowering pressure drop across the entire flow path.

Key operating parameters and mechanical features include:

  • Actuator mode: Pneumatic double-acting (DA) operation with 90-degree rotatable control air ports
  • Diaphragm design: PTFE and EPDM sealing boundary compressed by a central housing nut
  • Temperature range: Continuous operating capability from -20 degrees Celsius to 140 degrees Celsius
  • Flow optimization: Streamlined body contour delivering up to double the flow rate of legacy designs
  • Process connections: Metric socket fusion spigots for pipeline sizes d20 to d63 mm

Materials and standards

Manufactured from virgin Polyvinylidene Fluoride (PVDF), the valve body provides robust containment against strong oxidizing acids, halogens, and high-purity deionized water. The design adheres strictly to international chemical piping and hygiene criteria.

The component complies with dimensional standard ISO 10931 and face-to-face standard EN 558. Contact surfaces conform to FDA 21 CFR § 177.2510 and USP Class VI physiological safety requirements, featuring an inner surface roughness of Ra 0.5 micrometers or smoother to prevent media contamination and particle accumulation. Note that PVDF is not suitable for strong inorganic bases such as concentrated sodium hydroxide or organic amines.

Installation and jointing

Connecting the valve into process loops is accomplished via metric socket fusion in accordance with DVS 2207 Part 15 guidelines. The socket spigot ends enable direct thermal fusion into matching SYGEF PVDF fittings, creating homogeneous, leak-tight joints resistant to hot water sanitization, steam, and ozone exposure.

The central union housing nut permits rapid diaphragm inspection or service without dismantling surrounding piping or imposing uneven mechanical stress on the valve bonnet. Furthermore, the 90-degree indexable pneumatic supply ports simplify air line routing in tight skid enclosures and modular manifold racks.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
185655032
Material: PVDF
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
185655033
Material: PVDF
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
185655034
Material: PVDF
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
185655035
Material: PVDF
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
185655036
Material: PVDF
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
185655037
Material: PVDF
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
