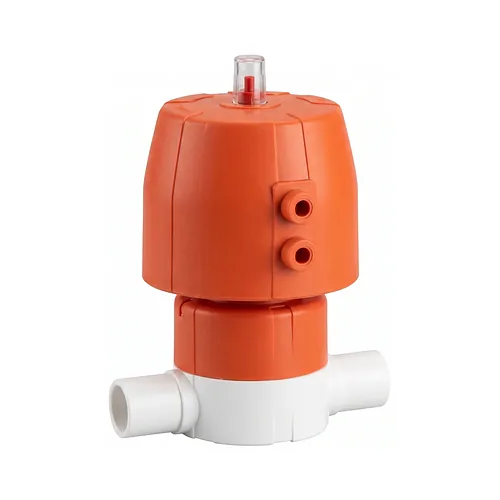

Diaphragm valve DIASTAR TenPlus FC

Diaphragm valve DIASTAR TenPlus FC

Material: PVDF-HP Gasket: PTFE/EPDM PN: 10 Bar

  Datasheet (PDF)

The Georg Fischer SYGEF Plus DIASTAR TenPlus FC diaphragm valve is an unpigmented PVDF-HP pneumatically actuated valve engineered for high-purity distribution and critical process control. Featuring a Fail Safe to Close actuation mechanism, this PN10 valve regulates aggressive fluids and ultrapure media across dimensions d20 to d63 mm (DN15 to DN50). It provides bidirectional shut-off, double the flow coefficient of earlier designs, and full compliance with semiconductor and pharmaceutical cleanroom standards.

Technical specifications

The valve incorporates a compact pneumatic actuator operating in a normally closed configuration with optimized fluid dynamics across the seat. A single high-strength central housing nut ensures uniform compression across the diaphragm perimeter while eliminating conventional multi-bolt bonnet assemblies.

  • Nominal pressure rating: PN10 (10 bar) bidirectional shut-off across d20 to d63 mm
  • Actuation mode: Fail Safe to Close (FC) pneumatic control with 90-degree indexable air inlet
  • Internal flow geometry: optimized valve body delivering double the kv flow rate with minimal pressure drop
  • Diaphragm assembly: high-purity PTFE membrane backed by an elastomer cushion for long cycle life
  • Thermal envelope: continuous working temperatures from -20 degrees Celsius to +140 degrees Celsius

Materials and standards

Manufactured from unpigmented virgin PVDF-HP under cleanroom ISO Class 5 and Class 7 conditions, the valve undergoes final rinsing with 18 Megohm-cm ultrapure water. The inert wetted components exhibit minimal leach-out of total organic carbon, anions, and trace metals.

The valve meets SEMI F57 cleanroom purity standards, FDA 21 CFR 177.2510 and FDA 21 CFR 177.1550 biocompatibility requirements, USP 25 Class VI physiological non-toxicity listings, and ASME BPE design criteria. The PVDF-HP body displays superior chemical resistance against oxidizing acids including concentrated nitric and sulfuric acids, ozone, and hot deionized water sanitization cycles, while remaining unsuitable for strong inorganic bases such as sodium hydroxide.

Installation and jointing

The valve body features extended metric fusion spigots engineered for integration via automated infrared fusion (IR Plus) per DVS 2207 Part 6 and bead-and-crevice-free (BCF Plus) fusion technologies. These non-contact welding techniques eliminate inner weld beads and dead zones to maintain absolute fluid purity.

During installation into high-purity skid systems or distribution loops, the 90-degree rotatable pneumatic port enables straightforward air line routing in tight spaces. The central housing nut permits fast inline diaphragm inspection and maintenance without disassembling the welded valve body from the pipeline.

  Datasheet (PDF)

The Georg Fischer SYGEF Plus DIASTAR TenPlus FC diaphragm valve is an unpigmented PVDF-HP pneumatically actuated valve engineered for high-purity distribution and critical process control. Featuring a Fail Safe to Close actuation mechanism, this PN10 valve regulates aggressive fluids and ultrapure media across dimensions d20 to d63 mm (DN15 to DN50). It provides bidirectional shut-off, double the flow coefficient of earlier designs, and full compliance with semiconductor and pharmaceutical cleanroom standards.

Technical specifications

The valve incorporates a compact pneumatic actuator operating in a normally closed configuration with optimized fluid dynamics across the seat. A single high-strength central housing nut ensures uniform compression across the diaphragm perimeter while eliminating conventional multi-bolt bonnet assemblies.

  • Nominal pressure rating: PN10 (10 bar) bidirectional shut-off across d20 to d63 mm
  • Actuation mode: Fail Safe to Close (FC) pneumatic control with 90-degree indexable air inlet
  • Internal flow geometry: optimized valve body delivering double the kv flow rate with minimal pressure drop
  • Diaphragm assembly: high-purity PTFE membrane backed by an elastomer cushion for long cycle life
  • Thermal envelope: continuous working temperatures from -20 degrees Celsius to +140 degrees Celsius

Materials and standards

Manufactured from unpigmented virgin PVDF-HP under cleanroom ISO Class 5 and Class 7 conditions, the valve undergoes final rinsing with 18 Megohm-cm ultrapure water. The inert wetted components exhibit minimal leach-out of total organic carbon, anions, and trace metals.

The valve meets SEMI F57 cleanroom purity standards, FDA 21 CFR 177.2510 and FDA 21 CFR 177.1550 biocompatibility requirements, USP 25 Class VI physiological non-toxicity listings, and ASME BPE design criteria. The PVDF-HP body displays superior chemical resistance against oxidizing acids including concentrated nitric and sulfuric acids, ozone, and hot deionized water sanitization cycles, while remaining unsuitable for strong inorganic bases such as sodium hydroxide.

Installation and jointing

The valve body features extended metric fusion spigots engineered for integration via automated infrared fusion (IR Plus) per DVS 2207 Part 6 and bead-and-crevice-free (BCF Plus) fusion technologies. These non-contact welding techniques eliminate inner weld beads and dead zones to maintain absolute fluid purity.

During installation into high-purity skid systems or distribution loops, the 90-degree rotatable pneumatic port enables straightforward air line routing in tight spaces. The central housing nut permits fast inline diaphragm inspection and maintenance without disassembling the welded valve body from the pipeline.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
181685132
Material: PVDF-HP
Gasket: PTFE/EPDM
PN: 10 Bar
pcs €971.09
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
181685133
Material: PVDF-HP
Gasket: PTFE/EPDM
PN: 10 Bar
pcs €1,025.35
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
181685134
Material: PVDF-HP
Gasket: PTFE/EPDM
PN: 10 Bar
pcs €1,101.08
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
181685135
Material: PVDF-HP
Gasket: PTFE/EPDM
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
181685136
Material: PVDF-HP
Gasket: PTFE/EPDM
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
181685137
Material: PVDF-HP
Gasket: PTFE/EPDM
PN: 10 Bar
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 181685132
D: 20 mm
Ships in 24 hours
€971.09 / pcs
SKU: 181685133
D: 25 mm
Ships in 24 hours
€1,025.35 / pcs
SKU: 181685134
D: 32 mm
Ships in 24 hours
€1,101.08 / pcs
SKU: 181685135
D: 40 mm
Ships in 24 hours
On Request / pcs
SKU: 181685136
D: 50 mm
Ships in 24 hours
On Request / pcs
SKU: 181685137
D: 63 mm
Ships in 24 hours
On Request / pcs
