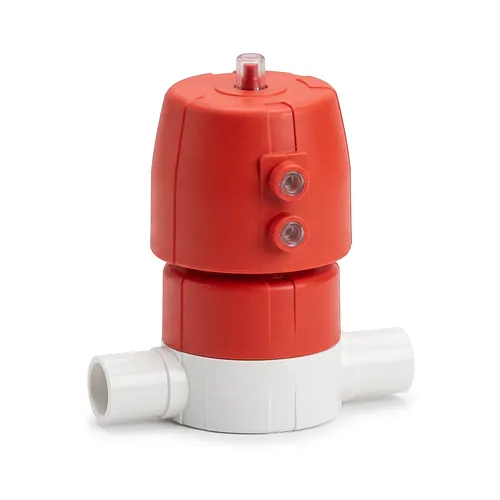

PVDF-HP Diaphragm Valve DIASTAR Ten FC d20-63

PVDF-HP Diaphragm Valve DIASTAR Ten FC d20-63

Material: PVDF-HP Gasket: PTFE/EPDM

  Datasheet (PDF)

The Georg Fischer SYGEF Plus Diaphragm Valve DIASTAR Ten FC provides automated linear flow regulation and zero-leakage shut-off across high-purity chemical and ultrapure water distribution networks. Engineered specifically for microelectronics, semiconductor manufacturing, and biopharmaceutical processing, this pneumatic valve combines a robust virgin PVDF-HP body with a spring-return Fail Safe to Close mechanism. Operating reliably across extreme thermal ranges, the unit safeguards critical cleanroom piping systems against contamination while delivering high flow efficiency across sizes d20 to d63 mm.

Technical specifications

The DIASTAR Ten FC pneumatic actuator utilizes a spring-return mechanism configured for fail-safe closing whenever control air pressure drops. Its rotatable pneumatic supply port allows flexible air tube routing in dense valve boxes and process skids.

Key engineering parameters and operational metrics include:

  • Actuation mode: Pneumatic Fail Safe to Close (FC) spring-return actuator
  • Operating temperature: -20 degrees Celsius to +140 degrees Celsius
  • Flow geometry: Hydrodynamically optimized body with reduced pressure drop
  • Bonnet construction: Patented central housing nut eliminating external metal bolts
  • Diaphragm assembly: High-performance composite PTFE/EPDM with white FKM seals

Materials and standards

Manufactured from unpigmented virgin polyvinylidene fluoride, this valve satisfies stringent purity criteria and cleanroom standards. Every unit is injection moulded, rinsed using 18 MOhm ultrapure deionized water, and double-bagged inside an ISO Class 5 cleanroom facility.

The high-purity polymer body complies with SEMI F57 and SEMI F40 requirements for trace metal and TOC leach-out, while conforming physiologically to FDA 21 CFR 177.2510 and USP Class VI. The fluoropolymer contact surfaces demonstrate exceptional chemical resistance against concentrated oxidizers, strong acids, and sanitizing media, safely accommodating periodic steam sterilization, hot water sanitization, and ozone sanitization without polymer degradation or ionic leaching.

Installation and jointing

The valve incorporates extended metric butt fusion spigots designed for automated contact-free welding technologies. These extended spigot ends provide ample clearance for clamping within cleanroom-grade welding machines without disassembling the valve housing.

Installers join the component using Bead and Crevice Free (BCF Plus) or non-contact Infrared (IR Plus) fusion according to DVS 2207-6 standards. These joining technologies eliminate internal beads and stagnant fluid zones, preventing biofilm buildup and bacterial proliferation in life science and semiconductor piping loops.

  Datasheet (PDF)

The Georg Fischer SYGEF Plus Diaphragm Valve DIASTAR Ten FC provides automated linear flow regulation and zero-leakage shut-off across high-purity chemical and ultrapure water distribution networks. Engineered specifically for microelectronics, semiconductor manufacturing, and biopharmaceutical processing, this pneumatic valve combines a robust virgin PVDF-HP body with a spring-return Fail Safe to Close mechanism. Operating reliably across extreme thermal ranges, the unit safeguards critical cleanroom piping systems against contamination while delivering high flow efficiency across sizes d20 to d63 mm.

Technical specifications

The DIASTAR Ten FC pneumatic actuator utilizes a spring-return mechanism configured for fail-safe closing whenever control air pressure drops. Its rotatable pneumatic supply port allows flexible air tube routing in dense valve boxes and process skids.

Key engineering parameters and operational metrics include:

  • Actuation mode: Pneumatic Fail Safe to Close (FC) spring-return actuator
  • Operating temperature: -20 degrees Celsius to +140 degrees Celsius
  • Flow geometry: Hydrodynamically optimized body with reduced pressure drop
  • Bonnet construction: Patented central housing nut eliminating external metal bolts
  • Diaphragm assembly: High-performance composite PTFE/EPDM with white FKM seals

Materials and standards

Manufactured from unpigmented virgin polyvinylidene fluoride, this valve satisfies stringent purity criteria and cleanroom standards. Every unit is injection moulded, rinsed using 18 MOhm ultrapure deionized water, and double-bagged inside an ISO Class 5 cleanroom facility.

The high-purity polymer body complies with SEMI F57 and SEMI F40 requirements for trace metal and TOC leach-out, while conforming physiologically to FDA 21 CFR 177.2510 and USP Class VI. The fluoropolymer contact surfaces demonstrate exceptional chemical resistance against concentrated oxidizers, strong acids, and sanitizing media, safely accommodating periodic steam sterilization, hot water sanitization, and ozone sanitization without polymer degradation or ionic leaching.

Installation and jointing

The valve incorporates extended metric butt fusion spigots designed for automated contact-free welding technologies. These extended spigot ends provide ample clearance for clamping within cleanroom-grade welding machines without disassembling the valve housing.

Installers join the component using Bead and Crevice Free (BCF Plus) or non-contact Infrared (IR Plus) fusion according to DVS 2207-6 standards. These joining technologies eliminate internal beads and stagnant fluid zones, preventing biofilm buildup and bacterial proliferation in life science and semiconductor piping loops.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
PN 10 Bar
180625132
Material: PVDF-HP
Gasket: PTFE/EPDM
pcs €834.13
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
PN 10 Bar
180625133
Material: PVDF-HP
Gasket: PTFE/EPDM
pcs €888.65
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
PN 10 Bar
180625134
Material: PVDF-HP
Gasket: PTFE/EPDM
pcs €946.38
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
PN 10 Bar
180625135
Material: PVDF-HP
Gasket: PTFE/EPDM
pcs €1,180.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
PN 10 Bar
180625136
Material: PVDF-HP
Gasket: PTFE/EPDM
pcs €1,421.18
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
PN 6 Bar
180625137
Material: PVDF-HP
Gasket: PTFE/EPDM
pcs €1,802.95
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 180625132
D: 20 mm
PN: 10 Bar
Ships in 24 hours
€834.13 / pcs
SKU: 180625133
D: 25 mm
PN: 10 Bar
Ships in 24 hours
€888.65 / pcs
SKU: 180625134
D: 32 mm
PN: 10 Bar
Ships in 24 hours
€946.38 / pcs
SKU: 180625135
D: 40 mm
PN: 10 Bar
Ships in 24 hours
€1,180.62 / pcs
SKU: 180625136
D: 50 mm
PN: 10 Bar
Ships in 24 hours
€1,421.18 / pcs
SKU: 180625137
D: 63 mm
PN: 6 Bar
Ships in 24 hours
€1,802.95 / pcs
