PP-H DIASTAR TenPlus Diaphragm Valve FC d20-63

PP-H DIASTAR TenPlus Diaphragm Valve FC d20-63

Material: PP-H PN: 10 Bar SDR: 11

  Datasheet (PDF)

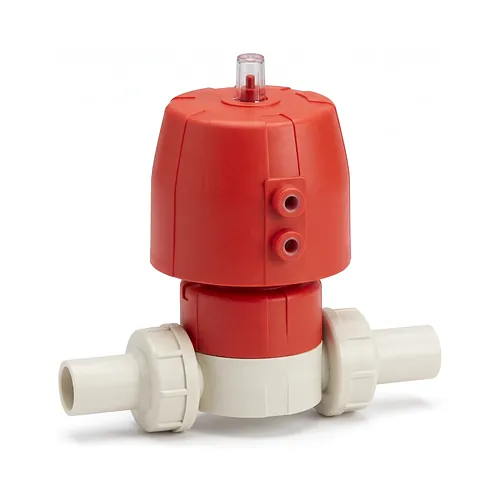

The Georg Fischer PROGEF Standard DIASTAR TenPlus pneumatic diaphragm valve is engineered for precise flow control and reliable shut-off in industrial piping networks up to a nominal operating pressure of 10 bar. Operating in fail-safe-to-close mode, this high-performance valve combines a robust beta-polypropylene homopolymer body with a corrosion-proof actuator, ensuring absolute process security in demanding chemical dosing, water treatment, and industrial fluid processing networks.

Technical specifications

The DIASTAR TenPlus pneumatic diaphragm valve operates via a fail-safe-to-close pneumatic actuator calibrated for line pressures up to 10 bar. Integrated internal galvanized steel springs instantly isolate flow upon control air failure, ensuring dependable bidirectional sealing and linear flow regulation.

  • Nominal pressure rating: PN10 (10 bar operating pressure across sizes d20 to d63).
  • Actuation mode: Fail-safe-to-close (FC) driven by an integrated preloaded galvanized steel spring set.
  • Control interface: 90 degrees rotatable pneumatic air connection for clean, flexible pilot line routing.
  • Visual monitoring: Integrated high-visibility optical position indicator visible from any operating angle.
  • Flow performance: Optimized internal flow geometry delivering elevated Kv values and minimal pressure loss.

Materials and standards

Engineered exclusively with high-grade industrial thermoplastics, the valve body is injection-moulded from beta-polypropylene homopolymer (β-PP-H) to withstand aggressive chemicals and mechanical stresses. The actuator housing is molded from glass-fibre reinforced polypropylene (PPGF), completely eliminating exterior metal tie rods or bolts to eliminate external atmospheric corrosion risks.

Diaphragm choices include elastic EPDM or high-purity, chemically inert PTFE with an elastomeric EPDM backing, ensuring maximum compatibility with corrosive acids, bases, and industrial effluents. In compliance with rigorous standards for pressure-bearing piping systems, the PROGEF Standard range is rated for a 25-year operational service life with water at 20 degrees Celsius. As an authorised Georg Fischer distributor, BigWeld supplies certified DIASTAR TenPlus valves across Europe for challenging installations where metallic valves fail.

Installation and jointing

Featuring metric SDR11 butt fusion spigot ends with true double union nuts, the valve enables quick radial installation and effortless maintenance without pipeline expansion. Technicians can inspect or replace the diaphragm assembly in place by unthreading the central housing nut without cutting or uncoupling welded pipeline sections.

The SDR11 spigot ends are fully compatible with both conventional heated tool butt fusion and contact-free infrared (IR) fusion machinery. This dual compatibility ensures smooth, reproducible welded joints with minimal interior bead formation, preserving system cleanliness and hydraulic efficiency throughout process distribution lines.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard DIASTAR TenPlus pneumatic diaphragm valve is engineered for precise flow control and reliable shut-off in industrial piping networks up to a nominal operating pressure of 10 bar. Operating in fail-safe-to-close mode, this high-performance valve combines a robust beta-polypropylene homopolymer body with a corrosion-proof actuator, ensuring absolute process security in demanding chemical dosing, water treatment, and industrial fluid processing networks.

Technical specifications

The DIASTAR TenPlus pneumatic diaphragm valve operates via a fail-safe-to-close pneumatic actuator calibrated for line pressures up to 10 bar. Integrated internal galvanized steel springs instantly isolate flow upon control air failure, ensuring dependable bidirectional sealing and linear flow regulation.

  • Nominal pressure rating: PN10 (10 bar operating pressure across sizes d20 to d63).
  • Actuation mode: Fail-safe-to-close (FC) driven by an integrated preloaded galvanized steel spring set.
  • Control interface: 90 degrees rotatable pneumatic air connection for clean, flexible pilot line routing.
  • Visual monitoring: Integrated high-visibility optical position indicator visible from any operating angle.
  • Flow performance: Optimized internal flow geometry delivering elevated Kv values and minimal pressure loss.

Materials and standards

Engineered exclusively with high-grade industrial thermoplastics, the valve body is injection-moulded from beta-polypropylene homopolymer (β-PP-H) to withstand aggressive chemicals and mechanical stresses. The actuator housing is molded from glass-fibre reinforced polypropylene (PPGF), completely eliminating exterior metal tie rods or bolts to eliminate external atmospheric corrosion risks.

Diaphragm choices include elastic EPDM or high-purity, chemically inert PTFE with an elastomeric EPDM backing, ensuring maximum compatibility with corrosive acids, bases, and industrial effluents. In compliance with rigorous standards for pressure-bearing piping systems, the PROGEF Standard range is rated for a 25-year operational service life with water at 20 degrees Celsius. As an authorised Georg Fischer distributor, BigWeld supplies certified DIASTAR TenPlus valves across Europe for challenging installations where metallic valves fail.

Installation and jointing

Featuring metric SDR11 butt fusion spigot ends with true double union nuts, the valve enables quick radial installation and effortless maintenance without pipeline expansion. Technicians can inspect or replace the diaphragm assembly in place by unthreading the central housing nut without cutting or uncoupling welded pipeline sections.

The SDR11 spigot ends are fully compatible with both conventional heated tool butt fusion and contact-free infrared (IR) fusion machinery. This dual compatibility ensures smooth, reproducible welded joints with minimal interior bead formation, preserving system cleanliness and hydraulic efficiency throughout process distribution lines.
