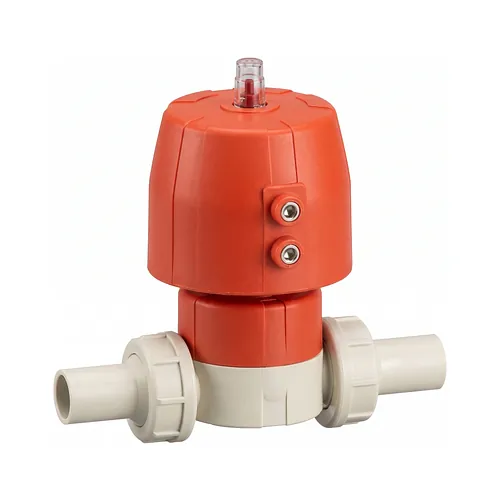

Diaphragm valve DIASTAR Ten DA PP-H

Diaphragm valve DIASTAR Ten DA PP-H

Material: PP-H PN: 10 Bar SDR: 11

  Datasheet (PDF)

The Georg Fischer PROGEF Standard DIASTAR Ten DA diaphragm valve is engineered for automated, double-acting pneumatic flow control in industrial piping networks. Designed for process engineers and industrial installers handling aggressive fluids, water treatment, or chemical dosing, this valve combines a robust beta-PP-H body with a glass-fibre reinforced pneumatic actuator. It delivers reliable bi-directional isolation, linear flow characteristics, and a rated working pressure of 10 bar at 20 degrees C across sizes d20 to d63 mm.

Technical specifications

The DIASTAR Ten DA actuator utilizes pneumatic pressure for both opening and closing cycles to guarantee precise, repeatable flow management. Its optimized internal flow profile doubles the flow coefficient of earlier designs, reducing pressure drop and pumping energy costs throughout the system.

  • Operation mode: Pneumatic double acting (DA) requiring compressed air to open and close
  • Nominal pressure rating: PN10 (10 bar at 20 degrees C), SDR11 dimensioning
  • Connection dimensions: Metric spigots from d20 mm up to d63 mm (DN15 to DN50)
  • Actuator housing: Glass-fibre reinforced polypropylene (PPGF) with integrated optical position indicator
  • Control interface: Rotatable 90 degrees air connection ports for flexible tubing routing
  • Diaphragm configuration: High-purity EPDM or chemically resistant composite PTFE/EPDM options

Materials and standards

Constructed entirely from premium industrial thermoplastics, the valve assembly resists aggressive media without external metal corrosion. The valve body is moulded from isotactic polypropylene homopolymer (beta-PP-H), which ensures high impact strength and long-term hydrostatic endurance.

Manufactured by Georg Fischer in accordance with rigorous industrial piping standards, the assembly features a single central union nut instead of external metal body bolts. This patented design ensures uniform circumferential compression across the diaphragm sealing ridge, preventing uneven stress concentrations and fluid leakage. The materials and construction comply with standard industrial pressure requirements, offering a projected service lifespan of up to 25 years when operated within technical limits.

Installation and jointing

The metric spigot ends enable direct jointing into PROGEF Standard piping systems using standard fusion techniques. Both conventional heated-tool butt fusion and high-purity infrared (IR) butt fusion methods are supported across all metric spigot diameters.

During installation, the compact envelope and 90 degrees rotatable pneumatic connection ports permit straightforward alignment within cramped skid frameworks and piping manifolds. The absence of metallic bolts eliminates the need for periodic torque re-tightening or anticorrosion coatings. Technicians benefit from immediate status verification via the raised optical position indicator, streamlining commissioning and operational maintenance in industrial environments.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard DIASTAR Ten DA diaphragm valve is engineered for automated, double-acting pneumatic flow control in industrial piping networks. Designed for process engineers and industrial installers handling aggressive fluids, water treatment, or chemical dosing, this valve combines a robust beta-PP-H body with a glass-fibre reinforced pneumatic actuator. It delivers reliable bi-directional isolation, linear flow characteristics, and a rated working pressure of 10 bar at 20 degrees C across sizes d20 to d63 mm.

Technical specifications

The DIASTAR Ten DA actuator utilizes pneumatic pressure for both opening and closing cycles to guarantee precise, repeatable flow management. Its optimized internal flow profile doubles the flow coefficient of earlier designs, reducing pressure drop and pumping energy costs throughout the system.

  • Operation mode: Pneumatic double acting (DA) requiring compressed air to open and close
  • Nominal pressure rating: PN10 (10 bar at 20 degrees C), SDR11 dimensioning
  • Connection dimensions: Metric spigots from d20 mm up to d63 mm (DN15 to DN50)
  • Actuator housing: Glass-fibre reinforced polypropylene (PPGF) with integrated optical position indicator
  • Control interface: Rotatable 90 degrees air connection ports for flexible tubing routing
  • Diaphragm configuration: High-purity EPDM or chemically resistant composite PTFE/EPDM options

Materials and standards

Constructed entirely from premium industrial thermoplastics, the valve assembly resists aggressive media without external metal corrosion. The valve body is moulded from isotactic polypropylene homopolymer (beta-PP-H), which ensures high impact strength and long-term hydrostatic endurance.

Manufactured by Georg Fischer in accordance with rigorous industrial piping standards, the assembly features a single central union nut instead of external metal body bolts. This patented design ensures uniform circumferential compression across the diaphragm sealing ridge, preventing uneven stress concentrations and fluid leakage. The materials and construction comply with standard industrial pressure requirements, offering a projected service lifespan of up to 25 years when operated within technical limits.

Installation and jointing

The metric spigot ends enable direct jointing into PROGEF Standard piping systems using standard fusion techniques. Both conventional heated-tool butt fusion and high-purity infrared (IR) butt fusion methods are supported across all metric spigot diameters.

During installation, the compact envelope and 90 degrees rotatable pneumatic connection ports permit straightforward alignment within cramped skid frameworks and piping manifolds. The absence of metallic bolts eliminates the need for periodic torque re-tightening or anticorrosion coatings. Technicians benefit from immediate status verification via the raised optical position indicator, streamlining commissioning and operational maintenance in industrial environments.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
Gasket EPDM
167654112
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €269.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket PTFE/EPDM
167654132
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €362.52
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket EPDM
167654113
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €287.42
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
Gasket PTFE/EPDM
167654133
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €385.83
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket EPDM
167654114
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €302.94
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
Gasket PTFE/EPDM
167654134
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €414.30
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket EPDM
167654115
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €380.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
Gasket PTFE/EPDM
167654135
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €517.89
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket EPDM
167654116
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €479.05
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
Gasket PTFE/EPDM
167654136
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €647.34
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket EPDM
167654117
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €582.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
Gasket PTFE/EPDM
167654137
Material: PP-H
PN: 10 Bar
SDR: 11
pcs €787.15
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 167654112
D: 20 mm
Gasket: EPDM
Ships in 24 hours
€269.33 / pcs
SKU: 167654132
D: 20 mm
Gasket: PTFE/EPDM
Ships in 24 hours
€362.52 / pcs
SKU: 167654113
D: 25 mm
Gasket: EPDM
Ships in 24 hours
€287.42 / pcs
SKU: 167654133
D: 25 mm
Gasket: PTFE/EPDM
Ships in 24 hours
€385.83 / pcs
SKU: 167654114
D: 32 mm
Gasket: EPDM
Ships in 24 hours
€302.94 / pcs
SKU: 167654134
D: 32 mm
Gasket: PTFE/EPDM
Ships in 24 hours
€414.30 / pcs
SKU: 167654115
D: 40 mm
Gasket: EPDM
Ships in 24 hours
€380.64 / pcs
SKU: 167654135
D: 40 mm
Gasket: PTFE/EPDM
Ships in 24 hours
€517.89 / pcs
SKU: 167654116
D: 50 mm
Gasket: EPDM
Ships in 24 hours
€479.05 / pcs
SKU: 167654136
D: 50 mm
Gasket: PTFE/EPDM
Ships in 24 hours
€647.34 / pcs
SKU: 167654117
D: 63 mm
Gasket: EPDM
Ships in 24 hours
€582.62 / pcs
SKU: 167654137
D: 63 mm
Gasket: PTFE/EPDM
Ships in 24 hours
€787.15 / pcs
