Ductile Iron Dismantling Joint PN10/16 DN50-150

  Data Sheet |   Product Range

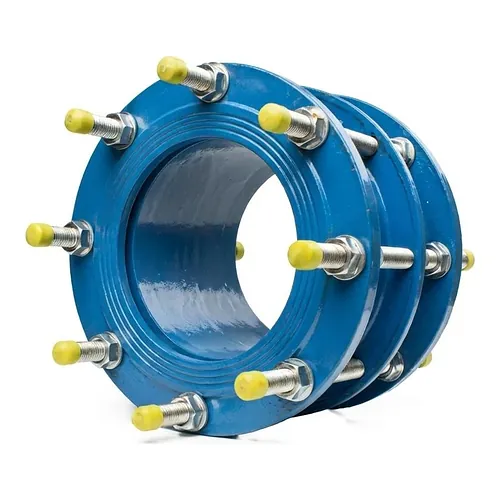

The BLUCAST ductile iron dismantling joint PN10/16 (DJ series) provides longitudinal adjustment and mechanical flexibility in flanged piping, so that inline equipment can be installed, aligned and removed without stressing the adjacent pipeline. Supplied from DN50 to DN150 with an EN-GJS-500-7 ductile iron body, EN 1092-2 flange drilling and EPDM sealing, it is used on drinking water distribution, wastewater lines and industrial utility piping to serve flanged gate valves, check valves, flow meters and pumping units.

The telescopic sleeve absorbs axial movement during assembly, while the integrated tie rods lock the joint at the required working length and transfer hydraulic end thrust across the body during service and pressure testing. Elastomeric EPDM gaskets to EN 681 maintain a watertight seal at working pressures up to 16 bar and temperatures from 0 degrees to +80 degrees Celsius; NBR gaskets are available on request.

Corrosion protection is an automated electrostatic powder epoxy coating applied to a minimum thickness of 250 µm in sky blue (RAL 5015). The coating is WRAS approved and the range holds PZH hygienic certification for drinking water contact. Tie bolts and nuts are hot-dip galvanized as standard, with AISI 304 / A2 stainless steel hardware optional for aggressive ground or chemical conditions.

• Nominal pressure: PN10 / PN16 (10 bar / 16 bar)
• Size range: DN50 to DN150
• Flange connection: EN 1092-2
• Body material: ductile iron EN-GJS-500-7
• Coating: powder epoxy, minimum 250 µm, RAL 5015
• Gasket: EPDM to EN 681 (NBR on request)
• Tie rods and fasteners: hot-dip galvanized steel (AISI 304 / A2 optional)
• Working temperature: 0 degrees to +80 degrees Celsius

Manufacturing is certified to ISO 9001:2015 and ISO 14001:2015, and every joint carries the 7-year BLUCAST quality warranty. BigWeld supplies the full size range as an authorised Blucast dealer.
