ABS Metric Pipe PN10 d20-225mm
Datasheet (PDF) | Product Range | Instructional Video

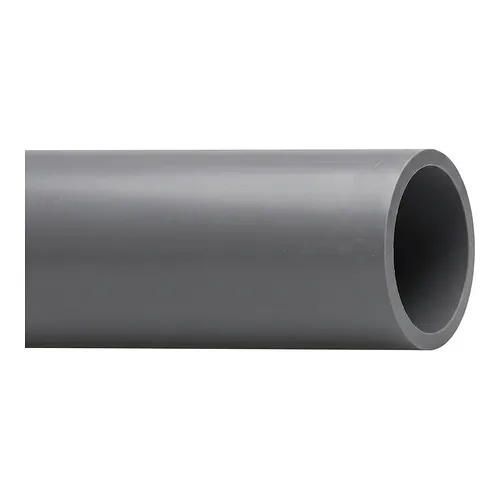

The Georg Fischer ABS metric pipe PN10 range is engineered for industrial cooling, chilled water networks, water treatment infrastructure and demanding chemical process lines. Manufactured from high-grade acrylonitrile butadiene styrene to EN 15493, this pressure piping system provides a nominal working pressure of 10 bar at 20 degrees C. Supplied in standard 5-metre plain-end lengths in gravel grey (RAL 7001), it provides engineers and installers with high impact ductility across extreme operating temperatures.
Materials and standards
Georg Fischer ABS metric pipes are manufactured in full accordance with EN 15493, delivering superior mechanical strength and structural integrity. The formulation retains remarkable impact toughness and ductility across a broad operating temperature window from -40 degrees C to +60 degrees C, where conventional thermoplastics often turn brittle.
The gravel grey (RAL 7001) material provides halogen-free, non-toxic piping suitable for process environments. ABS exhibits low thermal conductivity, which significantly reduces heat transfer and exterior surface condensation in chilled water loops, streamlining secondary insulation requirements. Furthermore, the material offers dependable resistance to diluted inorganic acids, alkalis, salt solutions and standard glycol-based secondary refrigerants.
Technical specifications
The metric ABS piping system is rated for a continuous working pressure of 10 bar at 20 degrees C across the entire d20 to d225 mm metric range. Its hydraulically smooth internal bore resists encrustation and scaling, sustaining low friction losses and consistent flow capacity over decades of continuous operation.
- Standard: EN 15493 metric pressure piping specification
- Nominal pressure: PN10 (10 bar at 20 degrees C)
- Temperature range: -40 degrees C to +60 degrees C continuous operating window
- Pipe dimensions: Outer diameters d20 mm up to d225 mm in 5-metre plain-end lengths
- Material: Acrylonitrile butadiene styrene (ABS), RAL 7001 gravel grey
- Jointing method: Cold solvent cement welding with Tangit ABS
Installation and jointing
Assembly is performed using cold solvent cement jointing with Tangit ABS adhesive and dedicated cleaner, creating permanent chemical fusion without hot work permits or electrical fusion tools. The spigot-and-socket connection cures into a homogeneous, pressure-tight joint that matches the mechanical strength of the pipe wall.
Lightweight pipe sections ranging from 0.100 kg/m at d20 to 10.149 kg/m at d225 allow rapid handling and lower static loads on pipe support brackets, technical risers and ceiling trapezes. Thermal expansion must be accommodated using appropriate guide brackets, sliding supports and expansion loops. As an authorised Georg Fischer distributor, BigWeld supplies the complete metric ABS pipe and fitting system with comprehensive technical support across Europe.
Datasheet (PDF) | Product Range | Instructional Video
The Georg Fischer ABS metric pipe PN10 range is engineered for industrial cooling, chilled water networks, water treatment infrastructure and demanding chemical process lines. Manufactured from high-grade acrylonitrile butadiene styrene to EN 15493, this pressure piping system provides a nominal working pressure of 10 bar at 20 degrees C. Supplied in standard 5-metre plain-end lengths in gravel grey (RAL 7001), it provides engineers and installers with high impact ductility across extreme operating temperatures.
Materials and standards
Georg Fischer ABS metric pipes are manufactured in full accordance with EN 15493, delivering superior mechanical strength and structural integrity. The formulation retains remarkable impact toughness and ductility across a broad operating temperature window from -40 degrees C to +60 degrees C, where conventional thermoplastics often turn brittle.
The gravel grey (RAL 7001) material provides halogen-free, non-toxic piping suitable for process environments. ABS exhibits low thermal conductivity, which significantly reduces heat transfer and exterior surface condensation in chilled water loops, streamlining secondary insulation requirements. Furthermore, the material offers dependable resistance to diluted inorganic acids, alkalis, salt solutions and standard glycol-based secondary refrigerants.
Technical specifications
The metric ABS piping system is rated for a continuous working pressure of 10 bar at 20 degrees C across the entire d20 to d225 mm metric range. Its hydraulically smooth internal bore resists encrustation and scaling, sustaining low friction losses and consistent flow capacity over decades of continuous operation.
- Standard: EN 15493 metric pressure piping specification
- Nominal pressure: PN10 (10 bar at 20 degrees C)
- Temperature range: -40 degrees C to +60 degrees C continuous operating window
- Pipe dimensions: Outer diameters d20 mm up to d225 mm in 5-metre plain-end lengths
- Material: Acrylonitrile butadiene styrene (ABS), RAL 7001 gravel grey
- Jointing method: Cold solvent cement welding with Tangit ABS
Installation and jointing
Assembly is performed using cold solvent cement jointing with Tangit ABS adhesive and dedicated cleaner, creating permanent chemical fusion without hot work permits or electrical fusion tools. The spigot-and-socket connection cures into a homogeneous, pressure-tight joint that matches the mechanical strength of the pipe wall.
Lightweight pipe sections ranging from 0.100 kg/m at d20 to 10.149 kg/m at d225 allow rapid handling and lower static loads on pipe support brackets, technical risers and ceiling trapezes. Thermal expansion must be accommodated using appropriate guide brackets, sliding supports and expansion loops. As an authorised Georg Fischer distributor, BigWeld supplies the complete metric ABS pipe and fitting system with comprehensive technical support across Europe.
| Size | SKU | Property | U.M. |
Price
incl. 21% VAT
VAT is calculated at checkout. It depends on who is buying (private person or company) and where the order is shipped, so the final rate may differ from the one shown here.
|
Availability | Add To Cart |
|---|---|---|---|---|---|---|
|
D
32 mm
|
169017083 |
Material: ABS
PN: 10 Bar
|
m | €15.88 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
40 mm
|
169017084 |
Material: ABS
PN: 10 Bar
|
m | €24.12 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
50 mm
|
169017085 |
Material: ABS
PN: 10 Bar
|
m | €35.07 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
63 mm
|
169017086 |
Material: ABS
PN: 10 Bar
|
m | €48.21 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
75 mm
|
169017087 |
Material: ABS
PN: 10 Bar
|
m | €71.24 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
90 mm
|
169017088 |
Material: ABS
PN: 10 Bar
|
m | €96.32 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
|
169017089 |
Material: ABS
PN: 10 Bar
|
m | €144.01 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
140 mm
|
169017091 |
Material: ABS
PN: 10 Bar
|
m | €285.31 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
160 mm
|
169017092 |
Material: ABS
PN: 10 Bar
|
m | €304.80 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
200 mm
|
169017093 |
Material: ABS
PN: 10 Bar
|
m | €442.07 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
225 mm
|
169017094 |
Material: ABS
PN: 10 Bar
|
m | €665.46 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
