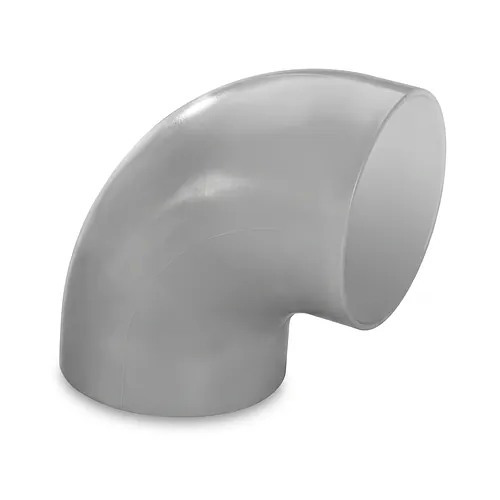

Bend 90 degrees PVDF SYGEF d20-d225 SDR21 PN16

Bend 90 degrees PVDF SYGEF d20-d225 SDR21 PN16

Material: PVDF SDR: 16 Bar

  Datasheet (PDF)

Manufactured by Georg Fischer and supplied across Europe through BigWeld, an authorised Georg Fischer distributor, the SYGEF Standard 90 degrees PVDF bend is an injection-moulded fitting designed for directional flow changes in high-purity and aggressive chemical process systems. Engineered from premium polyvinylidene fluoride with an SDR21 wall ratio, this robust fitting provides continuous PN16 pressure performance across dimensions from d20 mm to d225 mm.

Technical specifications

The SYGEF Standard PVDF bend delivers high geometric precision and smooth hydraulic flow across demanding industrial temperature ranges. Its high-grade fluoropolymer structure ensures continuous pressure retention and reliable barrier properties against harsh chemical exposure.

  • Material: Unpigmented, opaque Polyvinylidene Fluoride (PVDF)
  • Nominal pressure rating: PN16 / SDR21 at 20 degrees C
  • Temperature range: -20 degrees C to +140 degrees C continuous operating service
  • Surface quality: Inner bore roughness Ra ≤ 0.5 μm (20 μin) preventing biofilm and particle accumulation
  • Dimensional standard: Manufactured in full compliance with ISO 10931
  • Marking and traceability: Permanent embossed lot numbers, material class, and dimensional ratings

Materials and standards

Fabricated from virgin PVDF homopolymer resin, the SYGEF bend maintains exceptional chemical inertness against concentrated acids, halogens, organic solvents, and high-purity water media. It does not degrade under regular sanitisation routines involving live steam, hot deionised water, ozone, or chemical sterilisers.

The component complies with stringent regulatory frameworks including FDA 21 CFR 177.2510, USP 25 Class VI physiological non-toxicity standards, ASME BPE criteria, and FM-4910 cleanroom flammability ratings. Furthermore, it satisfies DIBt requirements for industrial process pipelines and environmental safety.

Installation and jointing

This 90 degrees bend features extended spigots that allow fast, secure connection using advanced cleanroom and industrial plastic welding technologies. The long spigot geometry accommodates conventional heated-tool butt fusion welding in accordance with DVS 2207-15.

For high-purity fluid handling, the spigots are fully compatible with non-contact infrared fusion (IR Plus per DVS 2207-6) across the entire dimension range and bead and crevice free welding (BCF Plus) up to d110 mm. These clean joining methods prevent dead legs, maintain continuous bore cleanliness, and guarantee repeatable weld quality.

  Datasheet (PDF)

Manufactured by Georg Fischer and supplied across Europe through BigWeld, an authorised Georg Fischer distributor, the SYGEF Standard 90 degrees PVDF bend is an injection-moulded fitting designed for directional flow changes in high-purity and aggressive chemical process systems. Engineered from premium polyvinylidene fluoride with an SDR21 wall ratio, this robust fitting provides continuous PN16 pressure performance across dimensions from d20 mm to d225 mm.

Technical specifications

The SYGEF Standard PVDF bend delivers high geometric precision and smooth hydraulic flow across demanding industrial temperature ranges. Its high-grade fluoropolymer structure ensures continuous pressure retention and reliable barrier properties against harsh chemical exposure.

  • Material: Unpigmented, opaque Polyvinylidene Fluoride (PVDF)
  • Nominal pressure rating: PN16 / SDR21 at 20 degrees C
  • Temperature range: -20 degrees C to +140 degrees C continuous operating service
  • Surface quality: Inner bore roughness Ra ≤ 0.5 μm (20 μin) preventing biofilm and particle accumulation
  • Dimensional standard: Manufactured in full compliance with ISO 10931
  • Marking and traceability: Permanent embossed lot numbers, material class, and dimensional ratings

Materials and standards

Fabricated from virgin PVDF homopolymer resin, the SYGEF bend maintains exceptional chemical inertness against concentrated acids, halogens, organic solvents, and high-purity water media. It does not degrade under regular sanitisation routines involving live steam, hot deionised water, ozone, or chemical sterilisers.

The component complies with stringent regulatory frameworks including FDA 21 CFR 177.2510, USP 25 Class VI physiological non-toxicity standards, ASME BPE criteria, and FM-4910 cleanroom flammability ratings. Furthermore, it satisfies DIBt requirements for industrial process pipelines and environmental safety.

Installation and jointing

This 90 degrees bend features extended spigots that allow fast, secure connection using advanced cleanroom and industrial plastic welding technologies. The long spigot geometry accommodates conventional heated-tool butt fusion welding in accordance with DVS 2207-15.

For high-purity fluid handling, the spigots are fully compatible with non-contact infrared fusion (IR Plus per DVS 2207-6) across the entire dimension range and bead and crevice free welding (BCF Plus) up to d110 mm. These clean joining methods prevent dead legs, maintain continuous bore cleanliness, and guarantee repeatable weld quality.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
735018706
Material: PVDF
SDR: 16 Bar
pcs €15.84
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
735018707
Material: PVDF
SDR: 16 Bar
pcs €19.24
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
735018708
Material: PVDF
SDR: 16 Bar
pcs €35.38
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
735018709
Material: PVDF
SDR: 16 Bar
pcs €60.88
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
735018710
Material: PVDF
SDR: 16 Bar
pcs €84.28
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
735018711
Material: PVDF
SDR: 16 Bar
pcs €137.21
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
735018712
Material: PVDF
SDR: 16 Bar
pcs €221.05
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
735018713
Material: PVDF
SDR: 16 Bar
pcs €331.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
735018714
Material: PVDF
SDR: 16 Bar
pcs €612.10
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
735018716
Material: PVDF
SDR: 16 Bar
pcs €1,366.53
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
735018717
Material: PVDF
SDR: 16 Bar
pcs €1,448.35
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 200 mm
735018719
Material: PVDF
SDR: 16 Bar
pcs €2,217.10
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
735018720
Material: PVDF
SDR: 16 Bar
pcs €2,629.91
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 735018706
D: 20 mm
Ships in 24 hours
€15.84 / pcs
SKU: 735018707
D: 25 mm
Ships in 24 hours
€19.24 / pcs
SKU: 735018708
D: 32 mm
Ships in 24 hours
€35.38 / pcs
SKU: 735018709
D: 40 mm
Ships in 24 hours
€60.88 / pcs
SKU: 735018710
D: 50 mm
Ships in 24 hours
€84.28 / pcs
SKU: 735018711
D: 63 mm
Ships in 24 hours
€137.21 / pcs
SKU: 735018712
D: 75 mm
Ships in 24 hours
€221.05 / pcs
SKU: 735018713
D: 90 mm
Ships in 24 hours
€331.33 / pcs
SKU: 735018714
D: 110 mm
Ships in 24 hours
€612.10 / pcs
SKU: 735018716
D: 140 mm
Ships in 24 hours
€1,366.53 / pcs
SKU: 735018717
D: 160 mm
Ships in 24 hours
€1,448.35 / pcs
SKU: 735018719
D: 200 mm
Ships in 24 hours
€2,217.10 / pcs
SKU: 735018720
D: 225 mm
Ships in 24 hours
€2,629.91 / pcs
