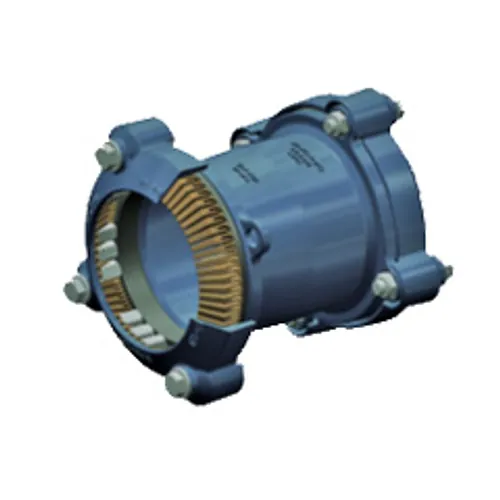

Blue Maxigrip restrained universal coupling in ductile iron with internal gripping segments and bolts

Restrained Universal Coupling MAXIGRIP Ductile Iron DN50-DN400

  Datasheet (PDF) |   Product Range

The MAXIGRIP restrained universal coupling is an engineered pipe fitting manufactured from ductile iron, designed for mechanical connection and full tensile pull-out resistance across plain-ended pipes. Built for municipal water distribution, industrial process circuits, and infrastructure utility networks, this wide-tolerance coupling joins diverse piping materials such as ductile iron, carbon steel, PEHD (PE80/PE100), and PVC-U across nominal sizes DN50 to DN400 with reliable pressure containment up to PN16.

Technical specifications

The restrained coupling integrates progressive mechanical gripping segments alongside a profiled elastomer seal to restrain axial pipe movement while maintaining hydraulic tightness. This self-anchoring mechanism accommodates working pressures up to PN16 and permits up to 4 degrees of angular deflection across the joint, safely absorbing ground movements and piping misalignment.

  • Nominal diameter coverage: DN 50 to DN 400 with wide-tolerance pipe engagement
  • Maximum operating pressure: PN16 (16 bar) for water distribution and utility lines
  • Angular deflection capability: up to 4 degrees across the joint without loss of seal integrity
  • Gasket elastomer: drinking-water-approved EPDM conforming to standard EN 681-1
  • Tensile restraint mechanism: integrated metal gripping teeth preventing axial pipe pull-out
  • Fasteners: corrosion-resistant stainless steel bolts for progressive and balanced torque application

Materials and standards

Constructed from high-grade EN-GJS-500-7 ductile iron, this coupling offers superior structural rigidity, impact toughness, and mechanical durability in underground installations. All casting surfaces receive an electrostatic powder epoxy coating with a minimum film thickness of 250 micrometers in sky blue RAL 5015 for reliable corrosion protection in aggressive soils and potable water service.

The sealing profiles conform to European standard EN 681-1 for water supply pipelines, providing durable resilience and resistance to degradation. High-tensile stainless steel hardware ensures long-term resistance to galvanic corrosion and trench humidity, delivering a zero-maintenance joint assembly that completely eliminates the necessity for external concrete thrust blocks on pressurized mains.

Installation and jointing

MAXIGRIP couplings slide directly over prepared, deburred plain pipe ends without requiring fitting disassembly or specialty installation equipment. Installers torque the opposing stainless steel tie bolts in a diametrical cross-pattern, concurrently compressing the EPDM sealing lip and driving the restraint teeth into the pipe wall.

The wide outside-diameter tolerance allows straightforward transitions between dissimilar pipe materials, such as joining legacy cast iron or carbon steel directly to modern PEHD or PVC-U pressure lines. By preventing pipe pull-out under axial dynamic thrust, this restrained fitting speeds up emergency repairs and new utility installations in congested trenches.

  Datasheet (PDF) |   Product Range

The MAXIGRIP restrained universal coupling is an engineered pipe fitting manufactured from ductile iron, designed for mechanical connection and full tensile pull-out resistance across plain-ended pipes. Built for municipal water distribution, industrial process circuits, and infrastructure utility networks, this wide-tolerance coupling joins diverse piping materials such as ductile iron, carbon steel, PEHD (PE80/PE100), and PVC-U across nominal sizes DN50 to DN400 with reliable pressure containment up to PN16.

Technical specifications

The restrained coupling integrates progressive mechanical gripping segments alongside a profiled elastomer seal to restrain axial pipe movement while maintaining hydraulic tightness. This self-anchoring mechanism accommodates working pressures up to PN16 and permits up to 4 degrees of angular deflection across the joint, safely absorbing ground movements and piping misalignment.

  • Nominal diameter coverage: DN 50 to DN 400 with wide-tolerance pipe engagement
  • Maximum operating pressure: PN16 (16 bar) for water distribution and utility lines
  • Angular deflection capability: up to 4 degrees across the joint without loss of seal integrity
  • Gasket elastomer: drinking-water-approved EPDM conforming to standard EN 681-1
  • Tensile restraint mechanism: integrated metal gripping teeth preventing axial pipe pull-out
  • Fasteners: corrosion-resistant stainless steel bolts for progressive and balanced torque application

Materials and standards

Constructed from high-grade EN-GJS-500-7 ductile iron, this coupling offers superior structural rigidity, impact toughness, and mechanical durability in underground installations. All casting surfaces receive an electrostatic powder epoxy coating with a minimum film thickness of 250 micrometers in sky blue RAL 5015 for reliable corrosion protection in aggressive soils and potable water service.

The sealing profiles conform to European standard EN 681-1 for water supply pipelines, providing durable resilience and resistance to degradation. High-tensile stainless steel hardware ensures long-term resistance to galvanic corrosion and trench humidity, delivering a zero-maintenance joint assembly that completely eliminates the necessity for external concrete thrust blocks on pressurized mains.

Installation and jointing

MAXIGRIP couplings slide directly over prepared, deburred plain pipe ends without requiring fitting disassembly or specialty installation equipment. Installers torque the opposing stainless steel tie bolts in a diametrical cross-pattern, concurrently compressing the EPDM sealing lip and driving the restraint teeth into the pipe wall.

The wide outside-diameter tolerance allows straightforward transitions between dissimilar pipe materials, such as joining legacy cast iron or carbon steel directly to modern PEHD or PVC-U pressure lines. By preventing pipe pull-out under axial dynamic thrust, this restrained fitting speeds up emergency repairs and new utility installations in congested trenches.

Variants, prices and availability
Size SKU U.M.
Price
incl. 21% VAT
Availability Add To Cart
DN 50 ( 46-70)
MGRIP050 pcs €157.28
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 60/65 (70-95)
MGRIP065 pcs €172.61
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 80 ( 88-123)
MGRIP080 pcs €195.63
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 100 (108-143)
MGRIP100 pcs €235.26
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 125 (133-168)
MGRIP125 pcs €280.01
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 150 (159-194)
MGRIP150 pcs €291.53
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 200 (200-235)
MGRIP200 pcs €522.95
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 250 (250-285)
MGRIP250 pcs €703.23
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 300 (315-350)
MGRIP300 pcs €889.89
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 400 (390-430)
MGRIP400 pcs €1,518.97
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: MGRIP050
DN: 50 ( 46-70)
Ships in 24 hours
€157.28 / pcs
SKU: MGRIP065
DN: 60/65 (70-95)
Ships in 24 hours
€172.61 / pcs
SKU: MGRIP080
DN: 80 ( 88-123)
Ships in 24 hours
€195.63 / pcs
SKU: MGRIP100
DN: 100 (108-143)
Ships in 24 hours
€235.26 / pcs
SKU: MGRIP125
DN: 125 (133-168)
Ships in 24 hours
€280.01 / pcs
SKU: MGRIP150
DN: 150 (159-194)
Ships in 24 hours
€291.53 / pcs
SKU: MGRIP200
DN: 200 (200-235)
Ships in 24 hours
€522.95 / pcs
SKU: MGRIP250
DN: 250 (250-285)
Ships in 24 hours
€703.23 / pcs
SKU: MGRIP300
DN: 300 (315-350)
Ships in 24 hours
€889.89 / pcs
SKU: MGRIP400
DN: 400 (390-430)
Ships in 24 hours
€1,518.97 / pcs
