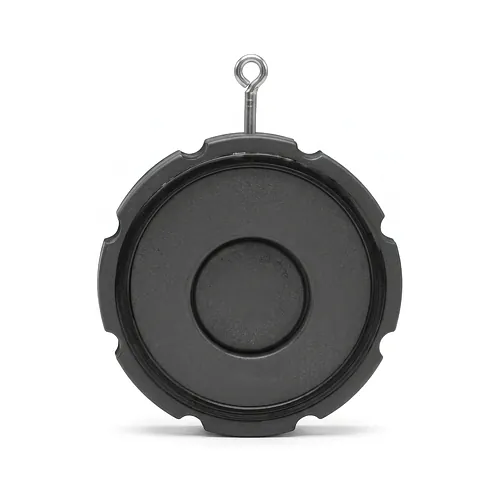

Wafer check valve type 369 PVC-U without spring

  Datasheet (PDF)

The Georg Fischer wafer check valve type 369 PVC-U without spring provides dependable, maintenance-free backflow prevention for industrial thermoplastic piping networks. Engineered for space-saving sandwich mounting between standard pipe flanges across dimensions from d40 up to d315 (DN32 to DN300), the valve operates with a free-swinging internal flap that actuates purely via hydrodynamic fluid flow and gravitational forces. By eliminating metallic return springs from the wetted flow path, the design prevents galvanic corrosion and chemical degradation, providing exceptional longevity in aggressive chemical media, water treatment, cooling loops, and industrial processing systems. The hydrodynamic swing disc profile creates an unobstructed pathway at full opening, minimizing pressure drop and delivering high flow efficiency compared to conventional spring-assisted check valves. The valve responds to minimal cracking pressures, requiring merely 1 mbar in horizontal pipe runs and between 10 and 18 mbar in vertical lines with upward flow, while reliable bubble-tight sealing is achieved with a water column of only 2 meters. Practical external supporting eyelets integrated into the outer housing facilitate effortless handling, suspension, and precise centering between flange studs during assembly. The sealing system utilizes specialized elastomeric gaskets in either EPDM or FKM to maintain complete tight shut-off without excessive bolt torque. Manufactured from durable unplasticized polyvinyl chloride, the type 369 valve offers superior structural rigidity, high chemical resistance, and outstanding reliability in compact plant configurations.
