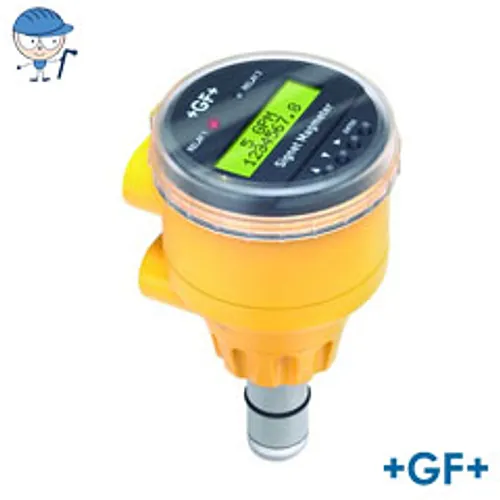

GF Signet Type 2551 Magmeter with digital display and relays.

Signet 2551 Electromagnetic Flow Meter Display Relays DN15-DN900

  Datasheet (PDF)

The Georg Fischer Signet 2551 magmeter display version with relays is an insertion-style electromagnetic flow meter engineered for demanding industrial fluid processes. Designed for pipes from DN15 to DN900 (0.5 to 36 in.), this instrument delivers high-accuracy velocity measurement from 0.05 to 10 m/s with no moving parts to foul or wear. It provides complete local monitoring alongside direct integration with industrial automation systems.

Technical specifications

The Signet 2551 flow sensor combines bi-directional electromagnetic measurement with versatile signal transmission and programmable alarm switching. Its advanced electronics incorporate an empty pipe detection circuit that forces a zero-flow signal whenever process fluid drops below the sensing electrodes.

  • Applicable pipe diameters: DN15 to DN900 (0.5 to 36 inches)
  • Flow velocity range: 0.05 to 10 m/s (0.15 to 33 ft/s)
  • Operating pressure limit: 10.3 bar at 25 degrees C (150 psi at 77 degrees F)
  • Signal outputs: 4 to 20 mA loop and digital S3L or bi-directional frequency
  • Relay auxiliary power: 9 to 24 VDC, 0.4 A maximum
  • Main loop power: 21.6 to 26.4 VDC, 22.1 mA maximum

The integrated digital display features both permanent and resettable totalizers, allowing operators to monitor cumulative volume directly in the field. Configuration can be managed directly through the multilingual menu supporting English, German, French, Spanish, Italian, and Portuguese, or via the optional 3-0250 USB setup tool connected to a PC for comprehensive diagnostics and calibration.

Applications

This magmeter is engineered for conductive process liquids across chemical manufacturing, industrial water treatment, municipal distribution, and wastewater handling. Because the electromagnetic sensor design has no moving mechanical components, it operates reliably in dirty fluids, slurries, and liquids containing suspended solids that would clog traditional paddlewheels.

The onboard mechanical relays provide immediate local control for threshold alarms, dosing pumps, and automated shut-off systems, while the 4 to 20 mA analog output transmits real-time flow rate data to programmable logic controllers (PLCs), SCADA systems, or chart recorders over long distances.

Installation and jointing

The Signet 2551 insertion magmeter mounts into process piping exclusively using dedicated Georg Fischer Signet installation fittings. These engineered tees, saddles, and weldolets ensure accurate insertion depth and precise alignment within the pipe bore, which is essential for uniform hydrodynamic measurement.

For optimal accuracy, the sensor must be installed in piping sections providing adequate straight runs upstream and downstream, ensuring full pipe immersion and stable flow profile development across the entire velocity envelope.

  Datasheet (PDF)

The Georg Fischer Signet 2551 magmeter display version with relays is an insertion-style electromagnetic flow meter engineered for demanding industrial fluid processes. Designed for pipes from DN15 to DN900 (0.5 to 36 in.), this instrument delivers high-accuracy velocity measurement from 0.05 to 10 m/s with no moving parts to foul or wear. It provides complete local monitoring alongside direct integration with industrial automation systems.

Technical specifications

The Signet 2551 flow sensor combines bi-directional electromagnetic measurement with versatile signal transmission and programmable alarm switching. Its advanced electronics incorporate an empty pipe detection circuit that forces a zero-flow signal whenever process fluid drops below the sensing electrodes.

  • Applicable pipe diameters: DN15 to DN900 (0.5 to 36 inches)
  • Flow velocity range: 0.05 to 10 m/s (0.15 to 33 ft/s)
  • Operating pressure limit: 10.3 bar at 25 degrees C (150 psi at 77 degrees F)
  • Signal outputs: 4 to 20 mA loop and digital S3L or bi-directional frequency
  • Relay auxiliary power: 9 to 24 VDC, 0.4 A maximum
  • Main loop power: 21.6 to 26.4 VDC, 22.1 mA maximum

The integrated digital display features both permanent and resettable totalizers, allowing operators to monitor cumulative volume directly in the field. Configuration can be managed directly through the multilingual menu supporting English, German, French, Spanish, Italian, and Portuguese, or via the optional 3-0250 USB setup tool connected to a PC for comprehensive diagnostics and calibration.

Applications

This magmeter is engineered for conductive process liquids across chemical manufacturing, industrial water treatment, municipal distribution, and wastewater handling. Because the electromagnetic sensor design has no moving mechanical components, it operates reliably in dirty fluids, slurries, and liquids containing suspended solids that would clog traditional paddlewheels.

The onboard mechanical relays provide immediate local control for threshold alarms, dosing pumps, and automated shut-off systems, while the 4 to 20 mA analog output transmits real-time flow rate data to programmable logic controllers (PLCs), SCADA systems, or chart recorders over long distances.

Installation and jointing

The Signet 2551 insertion magmeter mounts into process piping exclusively using dedicated Georg Fischer Signet installation fittings. These engineered tees, saddles, and weldolets ensure accurate insertion depth and precise alignment within the pipe bore, which is essential for uniform hydrodynamic measurement.

For optimal accuracy, the sensor must be installed in piping sections providing adequate straight runs upstream and downstream, ensuring full pipe immersion and stable flow profile development across the entire velocity envelope.
