PP-H metering ball valve PROGEF Type 523 Pro PN10

PP-H metering ball valve PROGEF Type 523 Pro PN10

Material: PP-H PN: 10 Bar

  Datasheet (PDF)

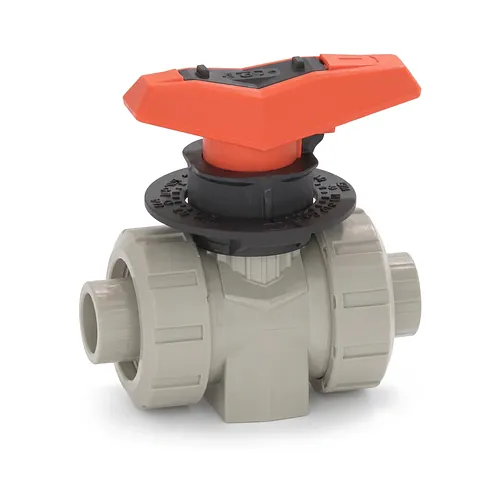

The Georg Fischer PROGEF Standard Type 523 Pro metering ball valve is manufactured from high-grade beta polypropylene homopolymer (beta-PP-H) for fine micro-dosing and linear flow regulation in industrial processing systems. Engineered specifically for low-flow chemical dosing where standard quarter-turn ball valves lack control resolution, this true double union valve operates across an extended 180 degrees scale. Rated at PN10 nominal pressure, it provides repeatable fluid control for aggressive media.

Technical specifications

The Type 523 Pro incorporates a specialized V-notch ball geometry and an indexed 180 degrees operating mechanism that doubles control sensitivity compared to standard ball valves. An integrated graduated scale on the ergonomic lever allows precise visual positioning and highly reproducible flow settings during manual process calibration.

  • Nominal pressure rating: PN10 (10 bar at 20 degrees Celsius)
  • Body and ball material: Isotactic beta polypropylene homopolymer (beta-PP-H)
  • Seating mechanism: Chemically inert PTFE ball seats with elastomeric backing cushions
  • Elastomer seals: High-performance EPDM or FKM sealing options
  • Operating range: Extended 180 degrees stroke with visual graduation scale
  • Mounting interface: Integrated M6 stainless steel threaded inserts in the base

Materials and standards

The valve body and wetted components are produced from beta-PP-H to ensure superior long-term hydrostatic strength and chemical inertness against concentrated acids, alkaline solutions, and demineralised water. Sealing integrity complies with rigorous industrial testing criteria, achieving leak rate A in accordance with ISO 9393-2 and EN 12266.

The internal assembly utilizes low-friction PTFE seats backed by dynamic elastomeric rings that continuously compensate for mechanical wear and thermal expansion cycles. Integrated base bushings made of stainless steel facilitate direct anchoring to structural pipe brackets without transmitting torsional stress or mechanical deformation to the internal valve bore.

Installation and jointing

The true double union design allows rapid radial installation and servicing without disassembling adjacent pipeline sections. End connections are designed for standard socket fusion, ensuring homogeneous, leak-tight joints within PROGEF metric pipe networks.

Standardized face-to-face z-dimensions maintain complete dimensional interchangeability with previous Type 523 valve installations. BigWeld supplies genuine Georg Fischer flow control components engineered for process reliability, chemical dosing accuracy, and extended operational lifespans in demanding water treatment and chemical process lines.

  Datasheet (PDF)

The Georg Fischer PROGEF Standard Type 523 Pro metering ball valve is manufactured from high-grade beta polypropylene homopolymer (beta-PP-H) for fine micro-dosing and linear flow regulation in industrial processing systems. Engineered specifically for low-flow chemical dosing where standard quarter-turn ball valves lack control resolution, this true double union valve operates across an extended 180 degrees scale. Rated at PN10 nominal pressure, it provides repeatable fluid control for aggressive media.

Technical specifications

The Type 523 Pro incorporates a specialized V-notch ball geometry and an indexed 180 degrees operating mechanism that doubles control sensitivity compared to standard ball valves. An integrated graduated scale on the ergonomic lever allows precise visual positioning and highly reproducible flow settings during manual process calibration.

  • Nominal pressure rating: PN10 (10 bar at 20 degrees Celsius)
  • Body and ball material: Isotactic beta polypropylene homopolymer (beta-PP-H)
  • Seating mechanism: Chemically inert PTFE ball seats with elastomeric backing cushions
  • Elastomer seals: High-performance EPDM or FKM sealing options
  • Operating range: Extended 180 degrees stroke with visual graduation scale
  • Mounting interface: Integrated M6 stainless steel threaded inserts in the base

Materials and standards

The valve body and wetted components are produced from beta-PP-H to ensure superior long-term hydrostatic strength and chemical inertness against concentrated acids, alkaline solutions, and demineralised water. Sealing integrity complies with rigorous industrial testing criteria, achieving leak rate A in accordance with ISO 9393-2 and EN 12266.

The internal assembly utilizes low-friction PTFE seats backed by dynamic elastomeric rings that continuously compensate for mechanical wear and thermal expansion cycles. Integrated base bushings made of stainless steel facilitate direct anchoring to structural pipe brackets without transmitting torsional stress or mechanical deformation to the internal valve bore.

Installation and jointing

The true double union design allows rapid radial installation and servicing without disassembling adjacent pipeline sections. End connections are designed for standard socket fusion, ensuring homogeneous, leak-tight joints within PROGEF metric pipe networks.

Standardized face-to-face z-dimensions maintain complete dimensional interchangeability with previous Type 523 valve installations. BigWeld supplies genuine Georg Fischer flow control components engineered for process reliability, chemical dosing accuracy, and extended operational lifespans in demanding water treatment and chemical process lines.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 16 mm
Gasket EPDM
167523401
Material: PP-H
PN: 10 Bar
pcs €134.73
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 16 mm
Gasket FKM
167523411
Material: PP-H
PN: 10 Bar
pcs €144.84
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket EPDM
167523402
Material: PP-H
PN: 10 Bar
pcs €139.98
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 20 mm
Gasket FKM
167523412
Material: PP-H
PN: 10 Bar
pcs €148.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 167523401
D: 16 mm
Gasket: EPDM
Ships in 24 hours
€134.73 / pcs
SKU: 167523411
D: 16 mm
Gasket: FKM
Ships in 24 hours
€144.84 / pcs
SKU: 167523402
D: 20 mm
Gasket: EPDM
Ships in 24 hours
€139.98 / pcs
SKU: 167523412
D: 20 mm
Gasket: FKM
Ships in 24 hours
€148.62 / pcs
