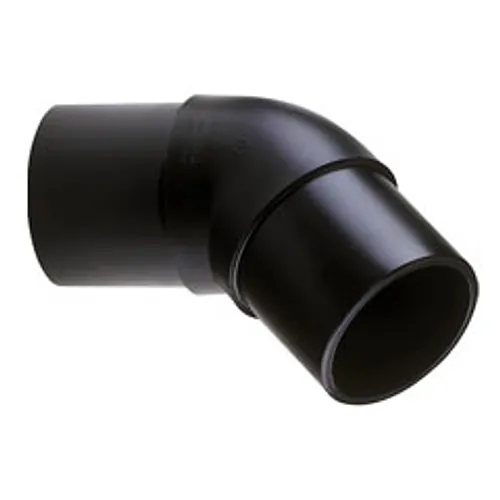

Black 45° PE100 SDR17 elbow fitting made of molded polyethylene

Elbow 45° PE100 SDR17 d90-d315 PN10

Material: Polyethylene PN: 10 Bar SDR: 17

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 45 degrees PE100 spigot elbow in SDR17 is an injection-moulded fitting engineered for directional changes in pressure piping networks. Sized from d90 mm up to d315 mm, this long-pattern fitting is rated for 10 bar water and 5 bar gas service. BigWeld, an authorised Georg Fischer distributor, supplies this component across Europe for municipal utilities, industrial cooling lines, and civil infrastructure projects.

Technical specifications

This SDR17 injection-moulded elbow features extended cylindrical spigots designed to integrate smoothly into electrofusion and butt fusion assemblies. The consistent SDR17 wall profile preserves maximum flow capacity while maintaining structural integrity under nominal operating pressures.

  • Fitting type: 45 degrees injection-moulded spigot elbow (long version)
  • Dimension range: d90 mm to d315 mm (DN80 to DN300)
  • Pressure ratings: PN10 (10 bar) for water; PN5 (5 bar) for natural gas
  • Wall thickness range: 5.4 mm to 18.7 mm matching standard SDR17 pipe
  • Spigot dimensions: Insertion length (L) from 81 mm to 150 mm; center-to-end dimension (z) from 120 mm to 250 mm

Materials and standards

Manufactured from high-density polyethylene resin certified by the PE100+ Association, this fitting provides long-term resistance to ground movement, hydraulic shock, and aggressive soil chemistry. The compound ensures corrosion-free operation without internal encrustation, supporting service lives exceeding 50 years.

The raw PE100 material exhibits a density of approximately 0.95 g/cm³, a tensile yield stress of 25 N/mm² at 23°C, and high impact resistance down to -40°C. It meets the manufacturing and quality assurance criteria of EN 12201 for potable and raw water networks, as well as EN 1555 for gaseous fuel conveyance, supported by approvals from DVGW, KIWA, and SVGW.

Installation and jointing

The elongated spigot ends provide generous clamping space for electrofusion couplers and alignment clamps, ensuring repeatable and void-free weld geometry. The fitting is equally suited to heated tool butt welding and infrared fusion.

Butt fusion jointing must follow DVS 2207-1 parameters, ensuring proper heating pressures, bead formation, and regulated cooling intervals. When electrofusion is preferred, the extended spigot length prevents thermal interference at the fusion zone and accommodates scraping and clamping equipment. Installers must scrape the oxidation layer, degrease joint surfaces with approved PE cleaners, and verify stress-free alignment before initiating the fusion cycle.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 45 degrees PE100 spigot elbow in SDR17 is an injection-moulded fitting engineered for directional changes in pressure piping networks. Sized from d90 mm up to d315 mm, this long-pattern fitting is rated for 10 bar water and 5 bar gas service. BigWeld, an authorised Georg Fischer distributor, supplies this component across Europe for municipal utilities, industrial cooling lines, and civil infrastructure projects.

Technical specifications

This SDR17 injection-moulded elbow features extended cylindrical spigots designed to integrate smoothly into electrofusion and butt fusion assemblies. The consistent SDR17 wall profile preserves maximum flow capacity while maintaining structural integrity under nominal operating pressures.

  • Fitting type: 45 degrees injection-moulded spigot elbow (long version)
  • Dimension range: d90 mm to d315 mm (DN80 to DN300)
  • Pressure ratings: PN10 (10 bar) for water; PN5 (5 bar) for natural gas
  • Wall thickness range: 5.4 mm to 18.7 mm matching standard SDR17 pipe
  • Spigot dimensions: Insertion length (L) from 81 mm to 150 mm; center-to-end dimension (z) from 120 mm to 250 mm

Materials and standards

Manufactured from high-density polyethylene resin certified by the PE100+ Association, this fitting provides long-term resistance to ground movement, hydraulic shock, and aggressive soil chemistry. The compound ensures corrosion-free operation without internal encrustation, supporting service lives exceeding 50 years.

The raw PE100 material exhibits a density of approximately 0.95 g/cm³, a tensile yield stress of 25 N/mm² at 23°C, and high impact resistance down to -40°C. It meets the manufacturing and quality assurance criteria of EN 12201 for potable and raw water networks, as well as EN 1555 for gaseous fuel conveyance, supported by approvals from DVGW, KIWA, and SVGW.

Installation and jointing

The elongated spigot ends provide generous clamping space for electrofusion couplers and alignment clamps, ensuring repeatable and void-free weld geometry. The fitting is equally suited to heated tool butt welding and infrared fusion.

Butt fusion jointing must follow DVS 2207-1 parameters, ensuring proper heating pressures, bead formation, and regulated cooling intervals. When electrofusion is preferred, the extended spigot length prevents thermal interference at the fusion zone and accommodates scraping and clamping equipment. Installers must scrape the oxidation layer, degrease joint surfaces with approved PE cleaners, and verify stress-free alignment before initiating the fusion cycle.
