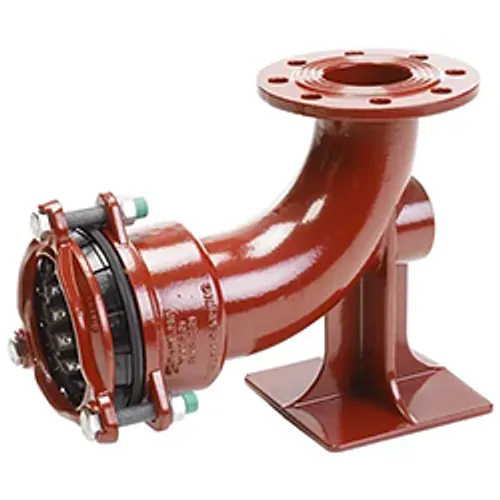

Red coated Waga wide range reduced duckfoot bend PN16 with top flange and bolted joint

WAGA Wide Range Reduced Duckfoot Bend PN16

Thread: 2" Material: Cast Iron

  Datasheet (PDF) |   Product Range | Instructional Video

The WAGA wide-range reduced duckfoot bend is an engineered ductile iron fitting designed for utility pipeline networks carrying potable water or natural gas. Engineered by Georg Fischer Waga N.V. for connecting hydrants, vertical risers, and utility branch lines, this robust fitting integrates structural footing support with full tensile restraint. It features a 2-inch threaded outlet and wide-tolerance sockets suitable for diverse pipe materials under operating pressures of PN10 and PN16.

Technical specifications

The fitting provides tensile-resistant jointing and stable foundation support across pressure ratings up to 16 bar. It accommodates pipe angular deflections of up to 8 degrees per socket while maintaining dynamic sealing integrity.

  • Nominal pressure rating: PN10 and PN16 for water and gas networks
  • Branch connection: 2-inch female thread for hydrants and risers
  • Angular deflection capability: up to 8 degrees per socket
  • Mechanical gripping: Uni/Fiks progressive system with AISI 316 stainless steel teeth
  • Wide-tolerance range: accommodates nominal diameters from DN65 to DN150

Materials and standards

Constructed from high-grade ductile cast iron, the fitting complies with European structural and hygiene standards for long service lives. The assembly features advanced surface passivation and galling-free stainless steel hardware.

The fitting body is cast from ductile iron grade EN-GJS-450-10 (GGG 45 in accordance with EN 1563), delivering a minimum tensile strength of 450 N/mm² and exceptional impact resistance. External and internal surfaces are protected by a factory-applied Resicoat RT 9000 R4 fusion-bonded epoxy powder coating with a minimum thickness of 250 micrometres, conforming to GSK quality standards. This coating withstands soil stress, cathodic disbondment, and aggressive chemical media spanning pH 2 to pH 13. Stainless steel bolts are coated with Lubo dry lubrication to ensure smooth tightening without thread galling, while the Uni/Fiks restraint wedges combine POM segments with grade AISI 316 stainless steel gripping teeth.

Installation and jointing

Installation can be performed in trench conditions without requiring specialized tools or external concrete thrust blocks. The wide-tolerance design connects multiple pipe materials, including PE, PVC-U, ductile iron, cast iron, steel, and asbestos cement.

The integrated duckfoot base provides a stable seating platform directly on the trench floor, distributing mechanical loads and riser weight evenly. Thanks to the Uni/Fiks mechanical restraint mechanism, the connection handles longitudinal hydraulic thrust forces autonomously, eliminating the cost and curing time associated with pouring concrete anchor blocks. The 8 degrees of permissible deflection per socket compensates for soil subsidence and pipeline misalignment during backfilling, ensuring dependable leak-free service throughout municipal distribution systems.

  Datasheet (PDF) |   Product Range | Instructional Video

The WAGA wide-range reduced duckfoot bend is an engineered ductile iron fitting designed for utility pipeline networks carrying potable water or natural gas. Engineered by Georg Fischer Waga N.V. for connecting hydrants, vertical risers, and utility branch lines, this robust fitting integrates structural footing support with full tensile restraint. It features a 2-inch threaded outlet and wide-tolerance sockets suitable for diverse pipe materials under operating pressures of PN10 and PN16.

Technical specifications

The fitting provides tensile-resistant jointing and stable foundation support across pressure ratings up to 16 bar. It accommodates pipe angular deflections of up to 8 degrees per socket while maintaining dynamic sealing integrity.

  • Nominal pressure rating: PN10 and PN16 for water and gas networks
  • Branch connection: 2-inch female thread for hydrants and risers
  • Angular deflection capability: up to 8 degrees per socket
  • Mechanical gripping: Uni/Fiks progressive system with AISI 316 stainless steel teeth
  • Wide-tolerance range: accommodates nominal diameters from DN65 to DN150

Materials and standards

Constructed from high-grade ductile cast iron, the fitting complies with European structural and hygiene standards for long service lives. The assembly features advanced surface passivation and galling-free stainless steel hardware.

The fitting body is cast from ductile iron grade EN-GJS-450-10 (GGG 45 in accordance with EN 1563), delivering a minimum tensile strength of 450 N/mm² and exceptional impact resistance. External and internal surfaces are protected by a factory-applied Resicoat RT 9000 R4 fusion-bonded epoxy powder coating with a minimum thickness of 250 micrometres, conforming to GSK quality standards. This coating withstands soil stress, cathodic disbondment, and aggressive chemical media spanning pH 2 to pH 13. Stainless steel bolts are coated with Lubo dry lubrication to ensure smooth tightening without thread galling, while the Uni/Fiks restraint wedges combine POM segments with grade AISI 316 stainless steel gripping teeth.

Installation and jointing

Installation can be performed in trench conditions without requiring specialized tools or external concrete thrust blocks. The wide-tolerance design connects multiple pipe materials, including PE, PVC-U, ductile iron, cast iron, steel, and asbestos cement.

The integrated duckfoot base provides a stable seating platform directly on the trench floor, distributing mechanical loads and riser weight evenly. Thanks to the Uni/Fiks mechanical restraint mechanism, the connection handles longitudinal hydraulic thrust forces autonomously, eliminating the cost and curing time associated with pouring concrete anchor blocks. The 8 degrees of permissible deflection per socket compensates for soil subsidence and pipeline misalignment during backfilling, ensuring dependable leak-free service throughout municipal distribution systems.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
DN 65 mm
MM 63 - 90
PN 10 Bar
709495636
Thread: 2"
Material: Cast Iron
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 65 mm
MM 63 - 90
PN 16 Bar
709495630
Thread: 2"
Material: Cast Iron
pcs €461.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 100 mm
MM 104 - 132
PN 16 Bar
709495623
Thread: 2"
Material: Cast Iron
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 125 mm
MM 132 - 155
PN 10 Bar
709495661
Thread: 2"
Material: Cast Iron
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 125 mm
MM 132 - 155
PN 16 Bar
709495648
Thread: 2"
Material: Cast Iron
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 150 mm
MM 154 - 192
PN 10 Bar
709495673
Thread: 2"
Material: Cast Iron
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 150 mm
MM 154 - 192
PN 16 Bar
709495667
Thread: 2"
Material: Cast Iron
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 709495636
DN: 65 mm
MM: 63 - 90
PN: 10 Bar
Ships in 10-15 days
On Request / pcs
SKU: 709495630
DN: 65 mm
MM: 63 - 90
PN: 16 Bar
Ships in 10-15 days
€461.41 / pcs
SKU: 709495623
DN: 100 mm
MM: 104 - 132
PN: 16 Bar
Ships in 10-15 days
On Request / pcs
SKU: 709495661
DN: 125 mm
MM: 132 - 155
PN: 10 Bar
Ships in 10-15 days
On Request / pcs
SKU: 709495648
DN: 125 mm
MM: 132 - 155
PN: 16 Bar
Ships in 10-15 days
On Request / pcs
SKU: 709495673
DN: 150 mm
MM: 154 - 192
PN: 10 Bar
Ships in 10-15 days
On Request / pcs
SKU: 709495667
DN: 150 mm
MM: 154 - 192
PN: 16 Bar
Ships in 10-15 days
On Request / pcs
