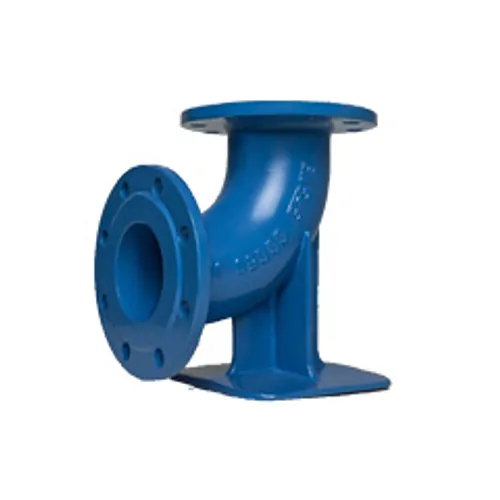

Blue ductile iron flanged duckfoot bend 90 degrees with supporting base

Ductile Iron Flanged Duckfoot Bend 90 Degrees PN16 DN80-DN150

  Datasheet (PDF) |   Product Range

The ductile iron flanged duckfoot bend 90 degrees PN16 is a robust structural directional fitting designed for municipal drinking water distribution networks, pumping stations, and utility pipelines. Manufactured from high-grade EN-GJS-500-7 ductile cast iron in full compliance with EN 545, this heavy-duty elbow combines a smooth 90-degree change of direction with an integrated support foot. It provides rigid anchoring directly onto concrete foundation pads, safeguarding adjacent valves and pipe sections against dynamic hydraulic forces.

Technical specifications

Engineered to manage fluid momentum changes and vertical riser loads, this duckfoot bend ensures stable flow redirection while dissipating thrust into structural foundations. Its hydraulic internal profile minimizes turbulence and localized pressure drops across municipal and industrial transmission lines.

  • Nominal pressure: PN16 rating for working pressures up to 16 bar.
  • Bend angle: 90 degrees with continuous uniform internal radius.
  • Flange dimensions: Drilled in strict accordance with EN 1092-2 PN16.
  • Integrated support: Heavy cast foot designed for stable bolting onto concrete slabs.
  • Corrosion protection: High-integrity powder epoxy coating with a minimum thickness of 250 μm.
  • Sanitary compliance: Certified for potable water systems under WRAS, ACS, and PZH.

Materials and standards

Fabricated from ductile iron grade EN-GJS-500-7 per EN 545, this fitting exhibits high tensile strength, elongation properties, and impact resistance. Every casting undergoes stringent quality control to prevent porosity and structural defects under continuous mechanical load.

All internal and external surfaces are thoroughly blast-cleaned and protected with an electrostatically applied powder epoxy barrier in RAL 5015 sky blue. With an average thickness exceeding 250 μm, this layer provides reliable protection against corrosive soils, aggressive groundwater, and chemical abrasion, meeting WRAS, ACS, and PZH drinking water hygiene standards without compromising water quality.

Installation and jointing

This duckfoot bend connects seamlessly to flanged gate valves, spool pieces, and vertical pump discharge risers via standard EN 1092-2 PN16 bolting arrangements. Proper alignment of companion flanges and cross-pattern bolt tightening with calibrated torque tools ensure dependable leak-free sealing with suitable elastomeric flange gaskets.

During installation at the base of vertical risers or deep pump sumps, the integrated duckfoot must rest entirely on a leveled concrete footing or dedicated thrust block. Securing the foot relieves the connecting pipework from the dead weight of vertical columns and cushions dynamic surge forces during pump start-up and shutdown cycles.

  Datasheet (PDF) |   Product Range

The ductile iron flanged duckfoot bend 90 degrees PN16 is a robust structural directional fitting designed for municipal drinking water distribution networks, pumping stations, and utility pipelines. Manufactured from high-grade EN-GJS-500-7 ductile cast iron in full compliance with EN 545, this heavy-duty elbow combines a smooth 90-degree change of direction with an integrated support foot. It provides rigid anchoring directly onto concrete foundation pads, safeguarding adjacent valves and pipe sections against dynamic hydraulic forces.

Technical specifications

Engineered to manage fluid momentum changes and vertical riser loads, this duckfoot bend ensures stable flow redirection while dissipating thrust into structural foundations. Its hydraulic internal profile minimizes turbulence and localized pressure drops across municipal and industrial transmission lines.

  • Nominal pressure: PN16 rating for working pressures up to 16 bar.
  • Bend angle: 90 degrees with continuous uniform internal radius.
  • Flange dimensions: Drilled in strict accordance with EN 1092-2 PN16.
  • Integrated support: Heavy cast foot designed for stable bolting onto concrete slabs.
  • Corrosion protection: High-integrity powder epoxy coating with a minimum thickness of 250 μm.
  • Sanitary compliance: Certified for potable water systems under WRAS, ACS, and PZH.

Materials and standards

Fabricated from ductile iron grade EN-GJS-500-7 per EN 545, this fitting exhibits high tensile strength, elongation properties, and impact resistance. Every casting undergoes stringent quality control to prevent porosity and structural defects under continuous mechanical load.

All internal and external surfaces are thoroughly blast-cleaned and protected with an electrostatically applied powder epoxy barrier in RAL 5015 sky blue. With an average thickness exceeding 250 μm, this layer provides reliable protection against corrosive soils, aggressive groundwater, and chemical abrasion, meeting WRAS, ACS, and PZH drinking water hygiene standards without compromising water quality.

Installation and jointing

This duckfoot bend connects seamlessly to flanged gate valves, spool pieces, and vertical pump discharge risers via standard EN 1092-2 PN16 bolting arrangements. Proper alignment of companion flanges and cross-pattern bolt tightening with calibrated torque tools ensure dependable leak-free sealing with suitable elastomeric flange gaskets.

During installation at the base of vertical risers or deep pump sumps, the integrated duckfoot must rest entirely on a leveled concrete footing or dedicated thrust block. Securing the foot relieves the connecting pipework from the dead weight of vertical columns and cushions dynamic surge forces during pump start-up and shutdown cycles.

Variants, prices and availability
Size SKU U.M.
Price
incl. 21% VAT
Availability Add To Cart
DN 80 mm
N080 pcs €67.51
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 100 mm
N100 pcs €83.64
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
DN 150 mm
N150 pcs €153.71
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: N080
DN: 80 mm
Ships in 24 hours
€67.51 / pcs
SKU: N100
DN: 100 mm
Ships in 24 hours
€83.64 / pcs
SKU: N150
DN: 150 mm
Ships in 24 hours
€153.71 / pcs
