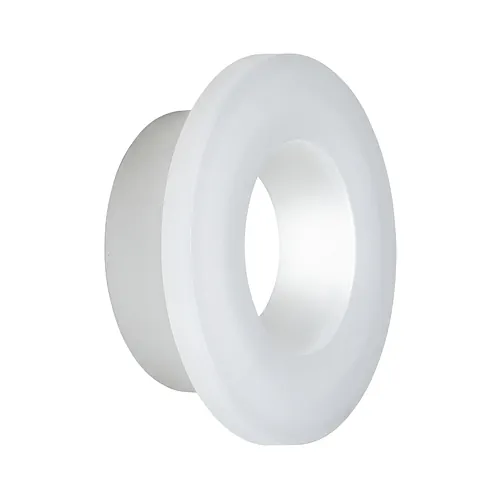

Flange adaptor serrated PVDF

  Datasheet (PDF)

The Georg Fischer SYGEF Standard metric serrated flange adaptor provides a high-integrity, chemically resistant flanged transition engineered for unpigmented polyvinylidene fluoride piping networks operating at nominal pressures up to PN16. Designed specifically for metric socket fusion jointing, the component ensures robust, crevice-free, and permanent homogeneous connections when welded according to established industrial thermoplastic procedures. The serrated jointing face profile is precision engineered to optimize compressive contact pressure and surface grip when compressed against elastomeric profile flange gaskets manufactured from EPDM or FKM, ensuring dependable, long-term hermetic sealing during aggressive chemical conveyance. Engineered to pair seamlessly with counterpart grooved flange adaptors and loose backing flanges manufactured from steel-reinforced polypropylene or glass-fibre reinforced polypropylene, the assembly guarantees uniform bolt load distribution while entirely shielding structural hardware from corrosive process fluids. The PVDF material construction maintains exceptional chemical inertness across an operational thermal envelope ranging from -20 degrees Celsius to +140 degrees Celsius, resisting concentrated acids, halogens, industrial solvents, and aggressive oxidizers without environmental stress cracking or surface degradation. Due to high material purity and a flow-optimized internal bore, the adaptor provides an optimal piping interface for pharmaceutical purified water, deionized industrial utility loops, and chemical distribution lines subjected to demanding sanitisation cycles using hot water, steam, or ozone.
