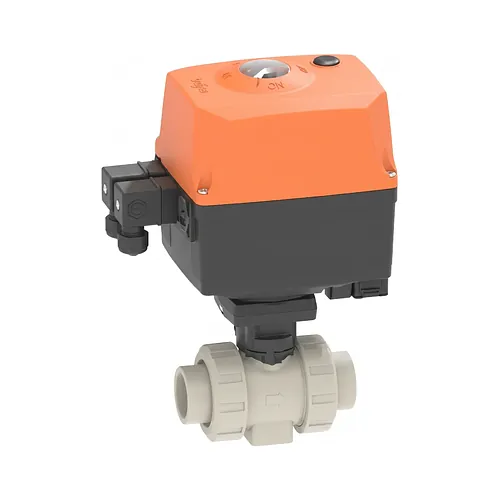

Electrically actuated ball valve PROGEF Type 180 PP-H
The Georg Fischer PROGEF Standard Type 180 electrically actuated ball valve provides automated shut-off and precise flow regulation in chemical processing, industrial wastewater treatment, and process cooling installations. Manufactured from high-grade beta polypropylene homopolymer (β-PP-H), this true double union valve covers metric socket fusion pipe sizes from d16 up to d110 mm (DN15 to DN100) and is rated for nominal operating pressures up to 10 bar (PN10) at 20 degrees Celsius.
Technical specifications
The Type 180 assembly integrates a durable thermoplastic ball valve with a compact electric actuator engineered for reliable cycling in industrial automation environments. It operates across a wide universal voltage supply and features integrated process monitoring capabilities.
- Operating voltage: universal 100–230 V AC/DC power supply
- Actuator enclosure: flame-retardant glass-fibre reinforced polypropylene (PP-GF) rated to IP68
- Integrated condensation protection: internal heating element prevents moisture build-up
- Emergency control: integrated manual override lever for unpowered commissioning and maintenance
- Position monitoring: optical visual indicator and multi-point electric position feedback
- Pressure rating: 10 bar (PN10) across all diameters at 20 degrees Celsius
Materials and standards
Every component of the PROGEF Type 180 is constructed from thoroughly tested materials conforming to rigorous international industrial piping standards. The robust valve body and smooth internal waterway deliver exceptional chemical resistance against acids, alkalis, and aggressive effluent streams.
The valve body and union ends are moulded from virgin β-PP-H, providing high impact resistance and elevated thermal stability. Tight shut-off is ensured by pure, low-friction PTFE ball seating backed by resilient elastomeric O-rings, available in either EPDM or FKM to match chemical fluid requirements. The complete valve assembly complies with EN 12266 and ISO 9393-2 leak rate A standards for absolute tightness. Threaded brass and stainless steel inserts embedded into the valve body base conform to EN ISO 16135 for rigid mounting brackets, completely isolating adjoining thermoplastic piping from rotational actuator torque.
Installation and jointing
The PROGEF Type 180 ball valve is engineered for permanent, homogeneous socket fusion jointing into metric PP-H industrial pipe systems using standard fusion tools. Its true double union design facilitates swift radial installation and straightforward dismantling without cutting adjacent piping lines.
During mechanical installation, the integrated mounting base must be secured to structural brackets to absorb actuation forces. As an authorised Georg Fischer distributor, BigWeld supplies the full range of PROGEF Type 180 automated valves, matching socket fusion pipe fittings, and technical documentation for engineering teams throughout Europe.
The Georg Fischer PROGEF Standard Type 180 electrically actuated ball valve provides automated shut-off and precise flow regulation in chemical processing, industrial wastewater treatment, and process cooling installations. Manufactured from high-grade beta polypropylene homopolymer (β-PP-H), this true double union valve covers metric socket fusion pipe sizes from d16 up to d110 mm (DN15 to DN100) and is rated for nominal operating pressures up to 10 bar (PN10) at 20 degrees Celsius.
Technical specifications
The Type 180 assembly integrates a durable thermoplastic ball valve with a compact electric actuator engineered for reliable cycling in industrial automation environments. It operates across a wide universal voltage supply and features integrated process monitoring capabilities.
- Operating voltage: universal 100–230 V AC/DC power supply
- Actuator enclosure: flame-retardant glass-fibre reinforced polypropylene (PP-GF) rated to IP68
- Integrated condensation protection: internal heating element prevents moisture build-up
- Emergency control: integrated manual override lever for unpowered commissioning and maintenance
- Position monitoring: optical visual indicator and multi-point electric position feedback
- Pressure rating: 10 bar (PN10) across all diameters at 20 degrees Celsius
Materials and standards
Every component of the PROGEF Type 180 is constructed from thoroughly tested materials conforming to rigorous international industrial piping standards. The robust valve body and smooth internal waterway deliver exceptional chemical resistance against acids, alkalis, and aggressive effluent streams.
The valve body and union ends are moulded from virgin β-PP-H, providing high impact resistance and elevated thermal stability. Tight shut-off is ensured by pure, low-friction PTFE ball seating backed by resilient elastomeric O-rings, available in either EPDM or FKM to match chemical fluid requirements. The complete valve assembly complies with EN 12266 and ISO 9393-2 leak rate A standards for absolute tightness. Threaded brass and stainless steel inserts embedded into the valve body base conform to EN ISO 16135 for rigid mounting brackets, completely isolating adjoining thermoplastic piping from rotational actuator torque.
Installation and jointing
The PROGEF Type 180 ball valve is engineered for permanent, homogeneous socket fusion jointing into metric PP-H industrial pipe systems using standard fusion tools. Its true double union design facilitates swift radial installation and straightforward dismantling without cutting adjacent piping lines.
During mechanical installation, the integrated mounting base must be secured to structural brackets to absorb actuation forces. As an authorised Georg Fischer distributor, BigWeld supplies the full range of PROGEF Type 180 automated valves, matching socket fusion pipe fittings, and technical documentation for engineering teams throughout Europe.
| Size | SKU | Property | U.M. |
Price
incl. 21% VAT
VAT is calculated at checkout. It depends on who is buying (private person or company) and where the order is shipped, so the final rate may differ from the one shown here.
|
Availability | Add To Cart |
|---|---|---|---|---|---|---|
|
D
16 mm
Gasket
EPDM
|
199180002 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,260.37 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
16 mm
Gasket
FKM
|
199180012 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,279.18 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
20 mm
Gasket
EPDM
|
199180003 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,263.29 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
20 mm
Gasket
FKM
|
199180013 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,282.06 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
25 mm
Gasket
EPDM
|
199180004 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,280.62 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
25 mm
Gasket
FKM
|
199180014 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,300.83 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
32 mm
Gasket
EPDM
|
199180005 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,303.75 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
32 mm
Gasket
FKM
|
199180015 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,332.63 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
40 mm
Gasket
EPDM
|
199180006 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,344.23 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
40 mm
Gasket
FKM
|
199180016 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,377.46 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
50 mm
Gasket
EPDM
|
199180007 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,391.94 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
50 mm
Gasket
FKM
|
199180017 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,441.05 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
63 mm
Gasket
EPDM
|
199180008 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,443.94 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
63 mm
Gasket
FKM
|
199180018 |
Material: PP-H
PN: 10 Bar
|
pcs | €1,513.31 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
75 mm
Gasket
EPDM
|
199180009 |
Material: PP-H
PN: 10 Bar
|
pcs | €2,098.71 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
75 mm
Gasket
FKM
|
199180019 |
Material: PP-H
PN: 10 Bar
|
pcs | €2,199.88 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
90 mm
Gasket
EPDM
|
199180010 |
Material: PP-H
PN: 10 Bar
|
pcs | €2,321.30 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
90 mm
Gasket
FKM
|
199180020 |
Material: PP-H
PN: 10 Bar
|
pcs | €2,445.59 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
Gasket
EPDM
|
199180011 |
Material: PP-H
PN: 10 Bar
|
pcs | €2,562.68 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
|
D
110 mm
Gasket
FKM
|
199180021 |
Material: PP-H
PN: 10 Bar
|
pcs | €2,711.55 |
Ships in 24 hours
Ships in 7-10 days
Ships in 10-15 days
Max stock reached
Please call
|
|
