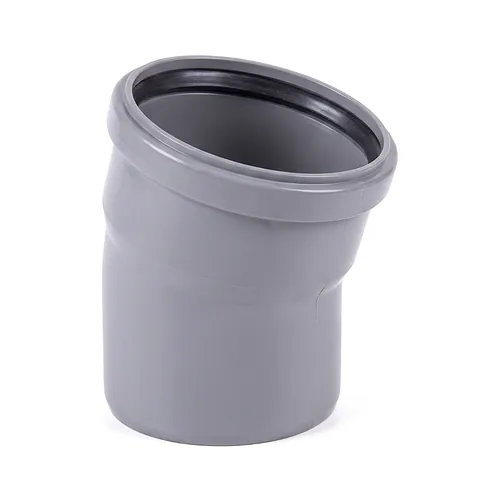

PP Elbow 15 Degrees HTB Soil and Waste D32-110mm

PP Elbow 15 Degrees HTB Soil and Waste D32-110mm

Material: PP Gasket: EPDM

  Datasheet (PDF)

The PP elbow 15 degrees HTB is an injection-moulded polypropylene fitting designed for directional changes in non-pressure gravity soil and waste discharge networks. Conforming strictly to SR EN 1451-1, this fitting provides reliable drainage for domestic wastewater, commercial effluents, and internal ventilation stacks across residential, public, and industrial buildings. Featuring an integrated push-fit socket with a pre-installed factory EPDM lip seal, it enables rapid, secure, and tool-free site assembly.

Materials and standards

Manufactured from high-grade unplasticized polypropylene compound, the fitting delivers long-term durability and structural rigidity in internal gravity drainage networks. The material formulation complies with European standards and ensures dependable continuous performance across aggressive wastewater environments.

  • Standard conformity: manufactured in compliance with SR EN 1451-1 and tested to SR EN 744 with zero impact breakage.
  • Compound properties: density of 0.95 g/cm³, modulus of elasticity of 1300 N/mm², and tensile strength of 15 N/mm².
  • Thermal limits: continuous operating wastewater temperature of 60 degrees Celsius, with short-term surges up to 95 degrees Celsius.
  • Chemical resistance: inert across a broad pH range from 2 to 12, resistant to domestic detergents, caustics, and inorganic salts.
  • Hydraulic efficiency: ultra-smooth internal bore with a Manning roughness coefficient of n = 0.01, preventing limescale encrustation.
  • Service life: engineered for an expected operational lifecycle exceeding 50 years under standard non-pressure discharge conditions.

Installation and jointing

Assembly relies on a push-fit socket joint engineered with a factory-retained elastomeric EPDM lip seal that absorbs structural movements and vibrations. Chemical solvent welding and open-flame heating are strictly prohibited on polypropylene systems.

During jointing, a dedicated silicone-based pipe lubricant must be applied evenly over the chamfered insertion spigot and the elastomeric gasket surface. The fitting spigot must be inserted fully home into the receiving socket without pulling back, whereas adjoining straight pipe ends require a 10 mm withdrawal to accommodate linear thermal expansion calculated at 0.12 mm/(m·K). Direct concrete embedment requires protecting socket joints with tape against slurry penetration.

Applications

This 15-degree elbow is specifically engineered for internal gravity soil, waste discharge, and secondary ventilation pipe stacks. It is suitable for domestic sanitary drainage, commercial kitchens, laundry utility systems, and chemical drainage lines within its operating pH range.

  Datasheet (PDF)

The PP elbow 15 degrees HTB is an injection-moulded polypropylene fitting designed for directional changes in non-pressure gravity soil and waste discharge networks. Conforming strictly to SR EN 1451-1, this fitting provides reliable drainage for domestic wastewater, commercial effluents, and internal ventilation stacks across residential, public, and industrial buildings. Featuring an integrated push-fit socket with a pre-installed factory EPDM lip seal, it enables rapid, secure, and tool-free site assembly.

Materials and standards

Manufactured from high-grade unplasticized polypropylene compound, the fitting delivers long-term durability and structural rigidity in internal gravity drainage networks. The material formulation complies with European standards and ensures dependable continuous performance across aggressive wastewater environments.

  • Standard conformity: manufactured in compliance with SR EN 1451-1 and tested to SR EN 744 with zero impact breakage.
  • Compound properties: density of 0.95 g/cm³, modulus of elasticity of 1300 N/mm², and tensile strength of 15 N/mm².
  • Thermal limits: continuous operating wastewater temperature of 60 degrees Celsius, with short-term surges up to 95 degrees Celsius.
  • Chemical resistance: inert across a broad pH range from 2 to 12, resistant to domestic detergents, caustics, and inorganic salts.
  • Hydraulic efficiency: ultra-smooth internal bore with a Manning roughness coefficient of n = 0.01, preventing limescale encrustation.
  • Service life: engineered for an expected operational lifecycle exceeding 50 years under standard non-pressure discharge conditions.

Installation and jointing

Assembly relies on a push-fit socket joint engineered with a factory-retained elastomeric EPDM lip seal that absorbs structural movements and vibrations. Chemical solvent welding and open-flame heating are strictly prohibited on polypropylene systems.

During jointing, a dedicated silicone-based pipe lubricant must be applied evenly over the chamfered insertion spigot and the elastomeric gasket surface. The fitting spigot must be inserted fully home into the receiving socket without pulling back, whereas adjoining straight pipe ends require a 10 mm withdrawal to accommodate linear thermal expansion calculated at 0.12 mm/(m·K). Direct concrete embedment requires protecting socket joints with tape against slurry penetration.

Applications

This 15-degree elbow is specifically engineered for internal gravity soil, waste discharge, and secondary ventilation pipe stacks. It is suitable for domestic sanitary drainage, commercial kitchens, laundry utility systems, and chemical drainage lines within its operating pH range.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 32 mm
FPE0096
Material: PP
Gasket: EPDM
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
FPE0010
Material: PP
Gasket: EPDM
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
FPE0011
Material: PP
Gasket: EPDM
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
FPE0067
Material: PP
Gasket: EPDM
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
FPE0012
Material: PP
Gasket: EPDM
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
