PP HTRE Soil and Waste Access Pipe d50-160mm

PP HTRE Soil and Waste Access Pipe d50-160mm

Material: PP

  Datasheet (PDF)

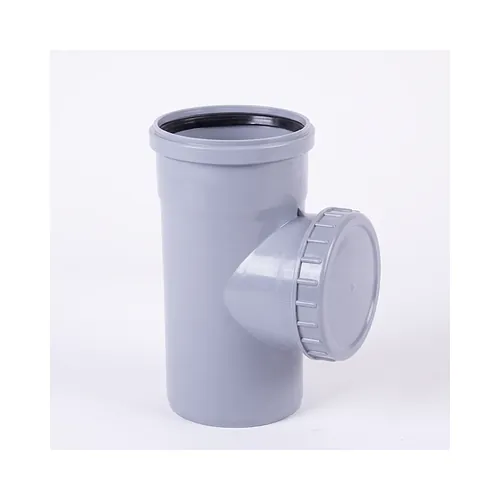

The PP HTRE access pipe provides an engineered, gastight inspection and rodding point for in-house gravity soil, waste discharge, and internal ventilation piping systems across nominal outside diameters from 50 mm to 160 mm. Fitted with an elastomeric EPDM push-fit socket and a removable threaded inspection cap, this fitting facilitates mechanical line cleaning, unblocking, and direct video diagnostics in domestic, commercial, and industrial drainage stacks.

Technical specifications

Manufactured according to SR EN 1451-1 and internal standard SF 98/2017, the fitting features a heavy-duty polypropylene body with high structural rigidity and chemical inertness. The hydraulic interior achieves an ultrasmooth bore that prevents encrustation and minimizes sediment buildup throughout gravity discharge cycles.

  • Standard compliance: SR EN 1451-1 and SR EN 744 (0% breakage under falling mass impact testing)
  • Thermal thresholds: Continuous service at 60 degrees Celsius; intermittent discharges up to 95 degrees Celsius
  • Cold resilience: Retains impact resistance down to -15 degrees Celsius
  • Chemical suitability: Inert to aggressive effluents across a pH range from 2 to 12
  • Hydraulic surface: Manning roughness coefficient n = 0.01 for reduced flow friction
  • Sealing material: Factory-retained synthetic EPDM lip seal gasket in profiled groove

Applications

PP HTRE access pipes are specified for installation at critical nodes in gravity soil and waste piping networks. They provide essential maintenance access points on vertical soil stacks, suspended horizontal collector manifolds, and kitchen or laundry discharge runs carrying aggressive thermal and chemical detergents.

The threaded access plug unscrews smoothly to allow the introduction of clearing spirals, high-pressure flushing nozzles, and camera inspection equipment. The integrated gasket beneath the cap guarantees permanent tightness against foul sewer gases and liquid egress during normal operational backpressure, maintaining sanitary conditions in utility basements, service shafts, and residential technical ducts.

Installation and jointing

Jointing is executed via push-fit sockets equipped with factory-seated EPDM lip seals, requiring clean spigot chamfering and approved assembly lubricant. In accordance with technical rules, fittings must be pushed completely home into adjacent sockets without axial expansion gaps; thermal expansion allowance is accommodated exclusively along the pipe spigot runs.

Solvent welding, chemical adhesives, and open-flame heating are strictly prohibited on polypropylene systems. Pipe runs adjacent to the access pipe must be secured using rubber-lined steel support brackets, positioning a fixed bracket immediately under the socket to prevent pipe movement while isolating acoustic vibrations.

  Datasheet (PDF)

The PP HTRE access pipe provides an engineered, gastight inspection and rodding point for in-house gravity soil, waste discharge, and internal ventilation piping systems across nominal outside diameters from 50 mm to 160 mm. Fitted with an elastomeric EPDM push-fit socket and a removable threaded inspection cap, this fitting facilitates mechanical line cleaning, unblocking, and direct video diagnostics in domestic, commercial, and industrial drainage stacks.

Technical specifications

Manufactured according to SR EN 1451-1 and internal standard SF 98/2017, the fitting features a heavy-duty polypropylene body with high structural rigidity and chemical inertness. The hydraulic interior achieves an ultrasmooth bore that prevents encrustation and minimizes sediment buildup throughout gravity discharge cycles.

  • Standard compliance: SR EN 1451-1 and SR EN 744 (0% breakage under falling mass impact testing)
  • Thermal thresholds: Continuous service at 60 degrees Celsius; intermittent discharges up to 95 degrees Celsius
  • Cold resilience: Retains impact resistance down to -15 degrees Celsius
  • Chemical suitability: Inert to aggressive effluents across a pH range from 2 to 12
  • Hydraulic surface: Manning roughness coefficient n = 0.01 for reduced flow friction
  • Sealing material: Factory-retained synthetic EPDM lip seal gasket in profiled groove

Applications

PP HTRE access pipes are specified for installation at critical nodes in gravity soil and waste piping networks. They provide essential maintenance access points on vertical soil stacks, suspended horizontal collector manifolds, and kitchen or laundry discharge runs carrying aggressive thermal and chemical detergents.

The threaded access plug unscrews smoothly to allow the introduction of clearing spirals, high-pressure flushing nozzles, and camera inspection equipment. The integrated gasket beneath the cap guarantees permanent tightness against foul sewer gases and liquid egress during normal operational backpressure, maintaining sanitary conditions in utility basements, service shafts, and residential technical ducts.

Installation and jointing

Jointing is executed via push-fit sockets equipped with factory-seated EPDM lip seals, requiring clean spigot chamfering and approved assembly lubricant. In accordance with technical rules, fittings must be pushed completely home into adjacent sockets without axial expansion gaps; thermal expansion allowance is accommodated exclusively along the pipe spigot runs.

Solvent welding, chemical adhesives, and open-flame heating are strictly prohibited on polypropylene systems. Pipe runs adjacent to the access pipe must be secured using rubber-lined steel support brackets, positioning a fixed bracket immediately under the socket to prevent pipe movement while isolating acoustic vibrations.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 50 mm
FPE0026
Material: PP
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
FPE0058
Material: PP
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
FPPPC110110XXIGR
Material: PP
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
FPE0059
Material: PP
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
FPE0118
Material: PP
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: FPE0026
D: 50 mm
Ships in 24 hours
On Request / pcs
SKU: FPE0058
D: 75 mm
Ships in 24 hours
On Request / pcs
SKU: FPPPC110110XXIGR
D: 110 mm
Ships in 24 hours
On Request / pcs
SKU: FPE0059
D: 125 mm
Ships in 24 hours
On Request / pcs
SKU: FPE0118
D: 160 mm
Ships in 24 hours
On Request / pcs
