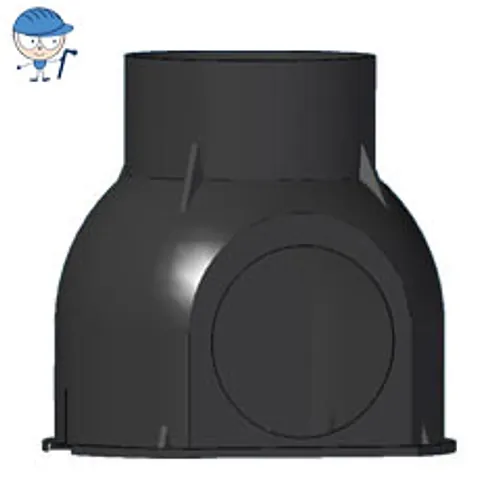

Black PE-HD hydrophore manhole base.

PE-HD Hydrophore Manhole D650 H1000mm

Material: PE-HD

  Datasheet (PDF)

The PE-HD hydrophore manhole D650 H1000mm is a monolithic underground chamber engineered to house, protect, and provide direct inspection access to domestic booster sets, pressure vessels, pump control automation, and water metering systems. With an internal diameter of 650 mm and an overall height of 1000 mm, this unit offers a compact underground footprint optimized for residential and light-commercial water supply installations requiring uncompromising watertight integrity.

Technical specifications

The chamber is manufactured as a seamless cylindrical structure from high-density polyethylene, engineered to withstand continuous lateral soil pressure and ground moisture without structural deformation.

  • Nominal diameter: 650 mm
  • Total chamber height: 1000 mm
  • Material: High-density polyethylene (PE-HD)
  • Construction: Seamless monolithic rotational moulding
  • Standard access covering: Walk-on non-traffic pedestrian cover
  • Service life: 50+ years under buried operating conditions

Unlike multi-element concrete ring chambers that frequently suffer from joint displacement, cracking, and chronic groundwater infiltration, this one-piece PE-HD construction provides an impermeable barrier against surrounding water tables. The complete lack of horizontal seams protects sensitive booster pumps, pressure switches, and electrical control panels from subsurface flooding and dampness.

Applications

This underground inspection chamber is specifically designed for pressurized cold water distribution networks where surface space is limited or where mechanical equipment must be concealed below ground.

Primary applications include housing borehole pump control units, residential hydrophore pressure vessels, water filtration manifolds, isolation valves, and fiscal water metering assemblies. The chemical inertness of high-density polyethylene guarantees full immunity to soil acidity, chemical attack, and stray electrochemical currents, ensuring reliable long-term service in rural, coastal, and aggressive ground environments.

Installation and jointing

The lightweight PE-HD body simplifies transport and site positioning, allowing manual handling into the excavation trench by two technicians without requiring truck-mounted cranes or heavy construction equipment.

The chamber must be positioned on a levelled, compacted sand bedding layer free of sharp stones. Lateral pipe penetrations for water supply lines and electrical conduits are cleanly drilled through the cylindrical walls using standard hole saws and sealed with elastomeric grommets. Backfilling should proceed in uniform layers of granular material, compacted symmetrically to prevent displacement.

Supplied standard with a durable pedestrian cover suitable for green spaces, courtyards, and pedestrian zones, the unit can also be integrated into vehicular roadways. For driveways and parking areas, a reinforced concrete load-distribution slab and a cast iron cover conforming to EN 124 class C250 or D400 must be installed above the chamber, transferring dynamic traffic loads directly into the road pavement structure without stressing the polyethylene body.

  Datasheet (PDF)

The PE-HD hydrophore manhole D650 H1000mm is a monolithic underground chamber engineered to house, protect, and provide direct inspection access to domestic booster sets, pressure vessels, pump control automation, and water metering systems. With an internal diameter of 650 mm and an overall height of 1000 mm, this unit offers a compact underground footprint optimized for residential and light-commercial water supply installations requiring uncompromising watertight integrity.

Technical specifications

The chamber is manufactured as a seamless cylindrical structure from high-density polyethylene, engineered to withstand continuous lateral soil pressure and ground moisture without structural deformation.

  • Nominal diameter: 650 mm
  • Total chamber height: 1000 mm
  • Material: High-density polyethylene (PE-HD)
  • Construction: Seamless monolithic rotational moulding
  • Standard access covering: Walk-on non-traffic pedestrian cover
  • Service life: 50+ years under buried operating conditions

Unlike multi-element concrete ring chambers that frequently suffer from joint displacement, cracking, and chronic groundwater infiltration, this one-piece PE-HD construction provides an impermeable barrier against surrounding water tables. The complete lack of horizontal seams protects sensitive booster pumps, pressure switches, and electrical control panels from subsurface flooding and dampness.

Applications

This underground inspection chamber is specifically designed for pressurized cold water distribution networks where surface space is limited or where mechanical equipment must be concealed below ground.

Primary applications include housing borehole pump control units, residential hydrophore pressure vessels, water filtration manifolds, isolation valves, and fiscal water metering assemblies. The chemical inertness of high-density polyethylene guarantees full immunity to soil acidity, chemical attack, and stray electrochemical currents, ensuring reliable long-term service in rural, coastal, and aggressive ground environments.

Installation and jointing

The lightweight PE-HD body simplifies transport and site positioning, allowing manual handling into the excavation trench by two technicians without requiring truck-mounted cranes or heavy construction equipment.

The chamber must be positioned on a levelled, compacted sand bedding layer free of sharp stones. Lateral pipe penetrations for water supply lines and electrical conduits are cleanly drilled through the cylindrical walls using standard hole saws and sealed with elastomeric grommets. Backfilling should proceed in uniform layers of granular material, compacted symmetrically to prevent displacement.

Supplied standard with a durable pedestrian cover suitable for green spaces, courtyards, and pedestrian zones, the unit can also be integrated into vehicular roadways. For driveways and parking areas, a reinforced concrete load-distribution slab and a cast iron cover conforming to EN 124 class C250 or D400 must be installed above the chamber, transferring dynamic traffic loads directly into the road pavement structure without stressing the polyethylene body.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
Ø D650 - H1000
RTE100
Material: PE-HD
pcs €226.88
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: RTE100
Ø: D650 - H1000
Ships in 24 hours
€226.88 / pcs
