Manhole wall connector PVC-KG KGF-SB

  Datasheet (PDF)

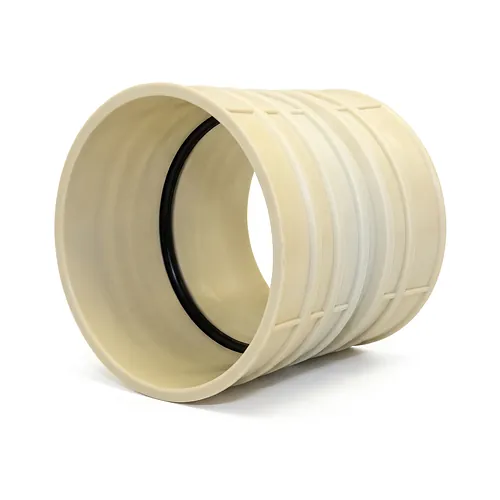

The TeraPlast PVC-KG KGF-SB manhole wall connector is engineered to provide a robust, watertight interface for unplasticized polyvinyl chloride piping penetrating concrete manhole structures and inspection chambers in buried gravity sewer networks. Designed specifically to eliminate the persistent risk of groundwater infiltration and sewage exfiltration at rigid structural interfaces, the connector incorporates a heavy-duty external anchoring collar that embeds directly into cast-in-place or precast concrete walls. This integral external barrier creates a positive mechanical anchor within the surrounding mortar or concrete matrix, preventing moisture migration along the fitting perimeter while effectively resisting shear forces, axial pipe thrust, and differential settlement between the rigid concrete chamber and the flexible pipeline trench. Across the complete nominal size series spanning outer diameters of 110 mm, 125 mm, 160 mm, 200 mm, 250 mm, 315 mm, 400 mm, and 500 mm, the connector maintains a standardised overall axial length of 240 mm to match standard concrete manhole wall dimensions. Internally, the double-socket configuration is equipped with factory-fitted elastomeric sealing rings retained in precision-profiled internal grooves, facilitating secure push-fit connections with plain-ended sewer pipes while permitting controlled longitudinal thermal expansion and slight angular movement. Manufactured from high-grade rigid PVC-U, the unit demonstrates high chemical resistance to aggressive municipal wastewater, corrosive soil elements, sulfates, and industrial discharges across a broad pH spectrum. The ultra-smooth inner surface minimizes hydraulic friction, prevents the accumulation of solid debris or encrustations, and maintains optimal gravimetric conveyance throughout long-term utility service.
