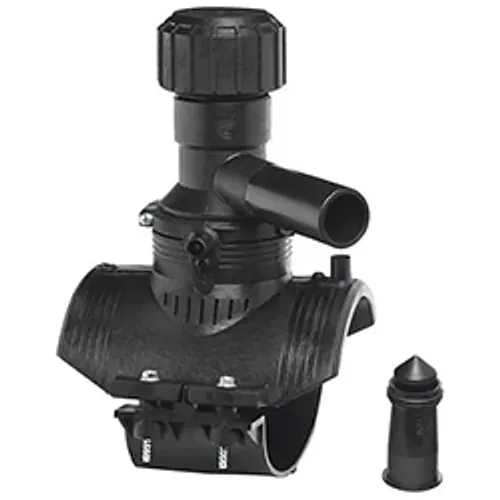

Black PE100 duobloc tapping saddle shown with Gas Stop valve element

Tapping saddle duobloc PE100 with Gas Stop d63-225mm 1-5 bar

Material: Polyethylene PN: 1-5 Bar SDR: 11 Rotatable: 360°

  Datasheet (PDF) |   | |   Product Range |   | | Instructional Video

The Georg Fischer ELGEF Plus PE100 duobloc tapping saddle with integrated Gas Stop and 360 degrees rotatable outlet provides secure under-pressure branch connections on active polyethylene gas distribution mains. Designed for utility engineers and certified network installers, this electrofusion fitting operates within a pressure range of 1 to 5 bar across main pipe diameters from d63 mm to d225 mm without interrupting gas flow during execution.

Technical specifications

The electrofusion tapping saddle incorporates an autonomous excess flow shut-off valve and an adjustable spigot outlet for optimal site adaptation. In the event of pipe severance or downstream rupture, the internal safety cartridge shuts off gas flow instantaneously.

  • Main pipe compatibility: d63 mm up to d225 mm in SDR 9 through SDR 26
  • Operating pressure rating: 1 to 5 bar for natural gas distribution systems
  • Safety device: Integrated Pipelife Gas-Stop unit (types GS 20/1, GS 32/1, GS 63/1 UE)
  • Outlet configuration: 360 degrees freely rotatable spigot before electrofusion welding
  • Jointing interface: 4 mm connector pins with limited path visual fusion indicators
  • Cutter assembly: Integral PE and brass tapping mechanism with internal travel stops

Materials and standards

All structural components are manufactured from premium virgin PE100 resin approved by the PE100+ Association, delivering exceptional crack resistance and chemical inertness in buried installations. The saddle ensures full compliance with European gas utility directives and quality management standards.

The fitting is certified in accordance with EN 1555-3 for polyethylene piping systems dedicated to gaseous fuels distribution. Production occurs within facilities certified under ISO 9001 and ISO 14001, ensuring consistent thermal fusion parameters. Furthermore, individual barcode labeling enables complete Track & Trace documentation, while the virgin resin matrix offers a projected service lifetime of up to 100 years.

Installation and jointing

Electrofusion jointing requires standard universal welding equipment and mechanical clamping using the supplied lower saddle piece. Live tapping is performed safely through the upper port once cooling has completed, after which the threaded cap provides secondary O-ring sealing.

Before applying welding current via the 4 mm terminals, the 360 degrees rotatable outlet can be positioned in any radial direction to align with the proposed trench route. The integrated cutter penetrates the pressurized main cleanly, retaining the pipe coupon within the cutter body to prevent internal debris. After withdrawing the cutter to its upper travel stop, the threaded cap with its internal elastomer seal guarantees a durable secondary barrier against gas leakage.

  Datasheet (PDF) |   | |   Product Range |   | | Instructional Video

The Georg Fischer ELGEF Plus PE100 duobloc tapping saddle with integrated Gas Stop and 360 degrees rotatable outlet provides secure under-pressure branch connections on active polyethylene gas distribution mains. Designed for utility engineers and certified network installers, this electrofusion fitting operates within a pressure range of 1 to 5 bar across main pipe diameters from d63 mm to d225 mm without interrupting gas flow during execution.

Technical specifications

The electrofusion tapping saddle incorporates an autonomous excess flow shut-off valve and an adjustable spigot outlet for optimal site adaptation. In the event of pipe severance or downstream rupture, the internal safety cartridge shuts off gas flow instantaneously.

  • Main pipe compatibility: d63 mm up to d225 mm in SDR 9 through SDR 26
  • Operating pressure rating: 1 to 5 bar for natural gas distribution systems
  • Safety device: Integrated Pipelife Gas-Stop unit (types GS 20/1, GS 32/1, GS 63/1 UE)
  • Outlet configuration: 360 degrees freely rotatable spigot before electrofusion welding
  • Jointing interface: 4 mm connector pins with limited path visual fusion indicators
  • Cutter assembly: Integral PE and brass tapping mechanism with internal travel stops

Materials and standards

All structural components are manufactured from premium virgin PE100 resin approved by the PE100+ Association, delivering exceptional crack resistance and chemical inertness in buried installations. The saddle ensures full compliance with European gas utility directives and quality management standards.

The fitting is certified in accordance with EN 1555-3 for polyethylene piping systems dedicated to gaseous fuels distribution. Production occurs within facilities certified under ISO 9001 and ISO 14001, ensuring consistent thermal fusion parameters. Furthermore, individual barcode labeling enables complete Track & Trace documentation, while the virgin resin matrix offers a projected service lifetime of up to 100 years.

Installation and jointing

Electrofusion jointing requires standard universal welding equipment and mechanical clamping using the supplied lower saddle piece. Live tapping is performed safely through the upper port once cooling has completed, after which the threaded cap provides secondary O-ring sealing.

Before applying welding current via the 4 mm terminals, the 360 degrees rotatable outlet can be positioned in any radial direction to align with the proposed trench route. The integrated cutter penetrates the pressurized main cleanly, retaining the pipe coupon within the cutter body to prevent internal debris. After withdrawing the cutter to its upper travel stop, the threaded cap with its internal elastomer seal guarantees a durable secondary barrier against gas leakage.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 63 mm
D 50 mm
193281159
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €404.26
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
D 20 mm
193281435
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
D 32 mm
193281154
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €198.50
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
D 63 mm
193281160
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €412.04
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
D 20 mm
193281437
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €188.78
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
D 32 mm
193281155
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €209.00
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
D 63 mm
193281161
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €422.56
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
D 20 mm
193281438
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €204.56
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
D 32 mm
193281156
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €224.75
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
D 63 mm
193281162
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €438.29
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
D 20 mm
193281439
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
D 32 mm
193281157
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €276.04
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
D 63 mm
193281163
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
D 20 mm
193281122
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
D 32 mm
193281158
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €334.08
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
D 63 mm
193281164
Material: Polyethylene
PN: 1-5 Bar
SDR: 11
Rotatable: 360°
pcs €547.67
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: 193281159
D: 63 mm
D: 50 mm
Ships in 24 hours
€404.26 / pcs
SKU: 193281435
D: 90 mm
D: 20 mm
Ships in 10-15 days
On Request / pcs
SKU: 193281154
D: 90 mm
D: 32 mm
Ships in 24 hours
€198.50 / pcs
SKU: 193281160
D: 90 mm
D: 63 mm
Ships in 24 hours
€412.04 / pcs
SKU: 193281437
D: 110 mm
D: 20 mm
Ships in 24 hours
€188.78 / pcs
SKU: 193281155
D: 110 mm
D: 32 mm
Ships in 24 hours
€209.00 / pcs
SKU: 193281161
D: 110 mm
D: 63 mm
Ships in 24 hours
€422.56 / pcs
SKU: 193281438
D: 125 mm
D: 20 mm
Ships in 24 hours
€204.56 / pcs
SKU: 193281156
D: 125 mm
D: 32 mm
Ships in 24 hours
€224.75 / pcs
SKU: 193281162
D: 125 mm
D: 63 mm
Ships in 24 hours
€438.29 / pcs
SKU: 193281439
D: 160 mm
D: 20 mm
Ships in 10-15 days
On Request / pcs
SKU: 193281157
D: 160 mm
D: 32 mm
Ships in 24 hours
€276.04 / pcs
SKU: 193281163
D: 160 mm
D: 63 mm
Ships in 10-15 days
On Request / pcs
SKU: 193281122
D: 225 mm
D: 20 mm
Ships in 10-15 days
On Request / pcs
SKU: 193281158
D: 225 mm
D: 32 mm
Ships in 24 hours
€334.08 / pcs
SKU: 193281164
D: 225 mm
D: 63 mm
Ships in 24 hours
€547.67 / pcs
