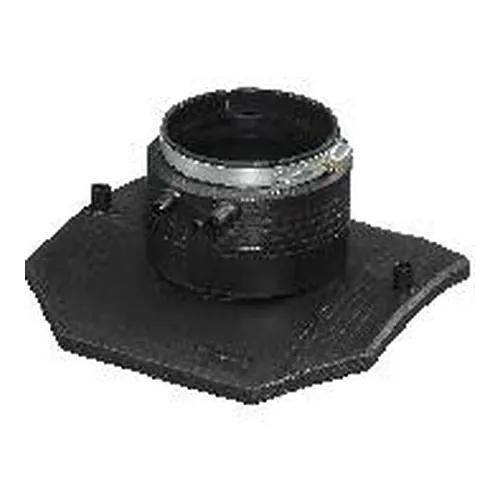

EF Branch saddle Topload PE100 d90-125 mm SDR11

  Data Sheet |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus PE100 Topload electrofusion branch saddle provides a robust, high-performance solution for creating large-diameter branched connections on polyethylene utility and industrial piping systems. Engineered specifically for branch outlets of d90 mm, d110 mm, and d125 mm on main header pipes ranging from d280 mm up to d630 mm, this SDR11 electrofusion fitting ensures exceptional mechanical strength and long-term joint integrity. Rated for operating pressures up to 16 bar in water applications and 10 bar in combustible gas networks, the saddle is manufactured from 100% virgin, PE100-plus certified high-density polyethylene in RAL 9005 black, offering a service life expectancy of 100 years.

Designed for rapid and safe electrofusion jointing, the Topload saddle utilizes Georg Fischer's advanced topload clamping system, ensuring uniform contact pressure across the entire fusion area without requiring bulky under-clamp components on large-diameter mains. The fitting features precisely placed resistance wires protected against accidental contact and oxidation, standard 4 mm connector pins for universal welding unit compatibility, and limited path fusion indicators that provide immediate visual confirmation of correct energy input. Full material batch traceability is guaranteed via integrated barcode standards, supporting digital jobsite documentation and quality assurance protocols.

Fully certified according to EN 12201-3 for potable water distribution, EN 1555-3 for natural gas transmission, and FM 1613 for underground fire protection systems, this branch saddle offers unmatched resistance to corrosion, chemical aggression, and ground movement. The smooth internal bore delivers optimal hydraulic flow characteristics, preventing sedimentation and pressure loss across municipal networks, industrial process lines, and district energy cooling circuits. BigWeld supplies the complete ELGEF Plus electrofusion range to professional contractors and pipeline engineers across Europe.
