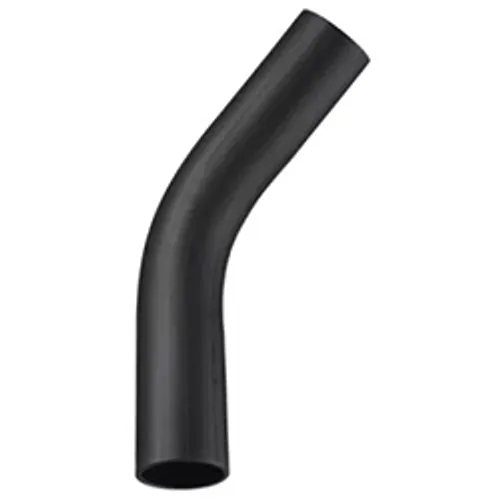

Black HDPE bend 11 degrees PE100 SDR17 fitting for pipeline systems

Bend 11 Degrees PE100 SDR17 PN10 d90-1000mm

Material: Polyethylene PN: 10 Bar SDR: 17

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 11 degree bend is an engineered spigot fitting fabricated from seamless PE100 pipe for utility and industrial water distribution networks. Designed for directional changes along pressure piping runs, this SDR17 fitting provides a nominal pressure rating of PN10 bar for water across a wide diameter spectrum from d90 up to d1000mm. The extended spigot design provides full compatibility with butt fusion machinery and electrofusion couplers.

Technical specifications

Manufactured with a 1.5xd bending radius, this fitting delivers a smooth hydraulic profile that minimizes pressure drop and turbulence across the pipeline. Wall thicknesses match standard SDR17 piping across all nominal diameters, ensuring seamless joint alignment without internal step restrictions.

  • Base material: High-density polyethylene PE100
  • Pressure class: PN10 bar for water service
  • Dimensional ratio: SDR17
  • Diameter range: d90 mm to d1000 mm (DN80 to DN1000)
  • Bend geometry: 11 degrees with 1.5xd center-line radius
  • Connection format: Long spigot ends for butt fusion or electrofusion

Installation and jointing

These seamless pipe bends must never be cut or shortened on site during assembly. The spigot legs are precision-dimensioned to accommodate the heating plates of butt welding equipment or the cold zones of electrofusion couplers without compromising the fusion envelope.

Installers must peel and clean the spigot surfaces thoroughly before welding to eliminate oxidized polymer layers and surface contaminants. Clamping tools should align both legs axially to eliminate joint bending stress during heating, fusion, and the mandatory ambient cooling cycle.

Applications

The fitting is engineered for buried and above-ground industrial, utility, and municipal infrastructure where gentle route adjustments are required. The slight 11-degree deflection accommodates natural terrain variations, trench deviations, and gradient alignments over extended transmission mains.

High-grade PE100 resin ensures exceptional resistance to chemical degradation, ground movement, and environmental stress cracking. Its robust construction makes it ideal for raw water transmission, treated potable supplies, and industrial cooling circuits requiring durable thermoplastic pressure networks.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer ELGEF Plus 11 degree bend is an engineered spigot fitting fabricated from seamless PE100 pipe for utility and industrial water distribution networks. Designed for directional changes along pressure piping runs, this SDR17 fitting provides a nominal pressure rating of PN10 bar for water across a wide diameter spectrum from d90 up to d1000mm. The extended spigot design provides full compatibility with butt fusion machinery and electrofusion couplers.

Technical specifications

Manufactured with a 1.5xd bending radius, this fitting delivers a smooth hydraulic profile that minimizes pressure drop and turbulence across the pipeline. Wall thicknesses match standard SDR17 piping across all nominal diameters, ensuring seamless joint alignment without internal step restrictions.

  • Base material: High-density polyethylene PE100
  • Pressure class: PN10 bar for water service
  • Dimensional ratio: SDR17
  • Diameter range: d90 mm to d1000 mm (DN80 to DN1000)
  • Bend geometry: 11 degrees with 1.5xd center-line radius
  • Connection format: Long spigot ends for butt fusion or electrofusion

Installation and jointing

These seamless pipe bends must never be cut or shortened on site during assembly. The spigot legs are precision-dimensioned to accommodate the heating plates of butt welding equipment or the cold zones of electrofusion couplers without compromising the fusion envelope.

Installers must peel and clean the spigot surfaces thoroughly before welding to eliminate oxidized polymer layers and surface contaminants. Clamping tools should align both legs axially to eliminate joint bending stress during heating, fusion, and the mandatory ambient cooling cycle.

Applications

The fitting is engineered for buried and above-ground industrial, utility, and municipal infrastructure where gentle route adjustments are required. The slight 11-degree deflection accommodates natural terrain variations, trench deviations, and gradient alignments over extended transmission mains.

High-grade PE100 resin ensures exceptional resistance to chemical degradation, ground movement, and environmental stress cracking. Its robust construction makes it ideal for raw water transmission, treated potable supplies, and industrial cooling circuits requiring durable thermoplastic pressure networks.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 90 mm
753090813
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €59.88
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
753090814
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €74.81
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
753090815
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €84.60
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
753090816
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €96.55
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
753090817
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €106.55
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 180 mm
753090818
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €170.46
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 200 mm
753090819
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €205.87
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
753090820
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €244.09
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 250 mm
753090821
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €295.16
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 280 mm
753090822
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €326.58
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 315 mm
753090823
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €421.41
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 355 mm
753090824
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €665.63
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 400 mm
753090825
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €923.93
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 450 mm
753090826
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €1,110.62
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 500 mm
753090827
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €1,522.79
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 560 mm
753090828
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €1,945.89
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 630 mm
753090829
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs €2,427.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 710 mm
753090830
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 800 mm
753090831
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 900 mm
753090832
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 1000 mm
753090833
Material: Polyethylene
PN: 10 Bar
SDR: 17
pcs On Request
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
