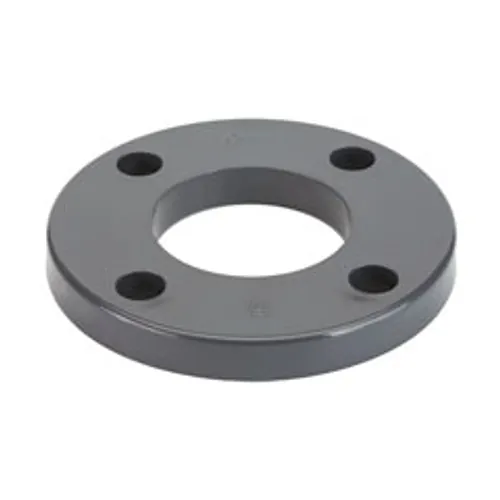

Dark grey PVC-U metric backing flange with four bolt holes for pipe connections

PVC-U Metric Backing Flange d20-d315

Material: PVC-U

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U metric backing flange is engineered for industrial pressure piping systems, securing solvent cement flange adaptors under high operational loads. Moulded from unplasticised polyvinyl chloride in dark grey RAL 7011, this loose backing ring distributes bolt tension evenly around the jointing collar. Designed for metric pipe dimensions from d20 mm to d315 mm, it provides reliable flanged connections across water treatment facilities, chemical distribution networks and industrial process installations.

Technical specifications

This metric backing flange aligns with standard PN10 bolt drilling patterns to enable secure mechanical joints across utility and process lines. The assembly maintains structural integrity across diverse fluid handling networks, operating up to a maximum continuous medium temperature of 45 degrees Celsius.

  • Manufacturer: Georg Fischer
  • Material: unplasticised polyvinyl chloride (PVC-U), RAL 7011 dark grey
  • Drilling pattern: metric PN10 bolt circle
  • Dimensional coverage: d20 mm to d315 mm pipe outside diameter
  • Maximum continuous medium temperature: 45 degrees Celsius
  • Compatible gasket types: flat or profiled EPDM and FKM seals

Materials and standards

Moulded from premium unplasticised polyvinyl chloride, the flange ring offers high chemical resistance against acids, alkalis and inorganic saline solutions. It completely resists electrochemical corrosion, atmospheric degradation and moisture, making it an ideal thermoplastic alternative to coated metal backing rings in aggressive working environments.

The component retains rigid mechanical clamping properties without rotting or pitting, eliminating the need for periodic anti-corrosion recoating. Its standardised metric geometry guarantees dimensional interchangeability and dependable flanged coupling to pumps, valves and flow meters.

Installation and jointing

Proper assembly requires slipping the loose backing flange onto the pipe spigot before cementing the mating flange adaptor into position. Solvent socket jointing must be executed using an approved PVC-U adhesive such as Tangit, ensuring a homogeneous and permanent fusion between pipe and fitting.

The joint should be completed using a compatible metric flange adaptor with a flat, serrated or O-ring jointing face, combined with an EPDM or FKM flange gasket and a proper bolt kit. Bolts must be tightened progressively in a crosswise star sequence to manufacturer torque specifications, ensuring uniform compression without inducing uneven stress across the thermoplastic components.

  Datasheet (PDF) |   Product Range | Instructional Video

The Georg Fischer PVC-U metric backing flange is engineered for industrial pressure piping systems, securing solvent cement flange adaptors under high operational loads. Moulded from unplasticised polyvinyl chloride in dark grey RAL 7011, this loose backing ring distributes bolt tension evenly around the jointing collar. Designed for metric pipe dimensions from d20 mm to d315 mm, it provides reliable flanged connections across water treatment facilities, chemical distribution networks and industrial process installations.

Technical specifications

This metric backing flange aligns with standard PN10 bolt drilling patterns to enable secure mechanical joints across utility and process lines. The assembly maintains structural integrity across diverse fluid handling networks, operating up to a maximum continuous medium temperature of 45 degrees Celsius.

  • Manufacturer: Georg Fischer
  • Material: unplasticised polyvinyl chloride (PVC-U), RAL 7011 dark grey
  • Drilling pattern: metric PN10 bolt circle
  • Dimensional coverage: d20 mm to d315 mm pipe outside diameter
  • Maximum continuous medium temperature: 45 degrees Celsius
  • Compatible gasket types: flat or profiled EPDM and FKM seals

Materials and standards

Moulded from premium unplasticised polyvinyl chloride, the flange ring offers high chemical resistance against acids, alkalis and inorganic saline solutions. It completely resists electrochemical corrosion, atmospheric degradation and moisture, making it an ideal thermoplastic alternative to coated metal backing rings in aggressive working environments.

The component retains rigid mechanical clamping properties without rotting or pitting, eliminating the need for periodic anti-corrosion recoating. Its standardised metric geometry guarantees dimensional interchangeability and dependable flanged coupling to pumps, valves and flow meters.

Installation and jointing

Proper assembly requires slipping the loose backing flange onto the pipe spigot before cementing the mating flange adaptor into position. Solvent socket jointing must be executed using an approved PVC-U adhesive such as Tangit, ensuring a homogeneous and permanent fusion between pipe and fitting.

The joint should be completed using a compatible metric flange adaptor with a flat, serrated or O-ring jointing face, combined with an EPDM or FKM flange gasket and a proper bolt kit. Bolts must be tightened progressively in a crosswise star sequence to manufacturer torque specifications, ensuring uniform compression without inducing uneven stress across the thermoplastic components.

Variants, prices and availability
Size SKU Property U.M.
Price
incl. 21% VAT
Availability Add To Cart
D 20 mm
PN 10 Bar
RV0FLI200
Material: PVC-U
pcs €2.44
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 25 mm
PN 10 Bar
RV0FLI250
Material: PVC-U
pcs €2.55
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 32 mm
PN 10 Bar
RV0FLI320
Material: PVC-U
pcs €3.03
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 40 mm
PN 10 Bar
RV0FLI400
Material: PVC-U
pcs €4.43
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 50 mm
PN 10 Bar
RV0FLI500
Material: PVC-U
pcs €4.63
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 63 mm
PN 10 Bar
RV0FLI630
Material: PVC-U
pcs €5.38
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 75 mm
PN 10 Bar
RV0FLI750
Material: PVC-U
pcs €7.33
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 90 mm
PN 10 Bar
RV0FLI900
Material: PVC-U
pcs €8.52
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 110 mm
PN 10 Bar
RV0FLI910
Material: PVC-U
pcs €10.35
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 125 mm
PN 10 Bar
RV0FLI920
Material: PVC-U
pcs €14.05
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 140 mm
PN 10 Bar
RV0FLI930
Material: PVC-U
pcs €16.20
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 160 mm
PN 10 Bar
RV0FLI940
Material: PVC-U
pcs €20.01
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 200 mm
PN 10 Bar
RV0FLI960
Material: PVC-U
pcs €40.69
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 225 mm
PN 10 Bar
RV0FLI970
Material: PVC-U
pcs €46.52
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 250 mm
PN 6 Bar
RV0FLI980
Material: PVC-U
pcs €89.87
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
D 315 mm
PN 6 Bar
RV0FLI991
Material: PVC-U
pcs €190.80
Ships in 24 hours Ships in 7-10 days Ships in 10-15 days Max stock reached Please call
incl. 21% VAT
SKU: RV0FLI200
D: 20 mm
PN: 10 Bar
Ships in 24 hours
€2.44 / pcs
SKU: RV0FLI250
D: 25 mm
PN: 10 Bar
Ships in 24 hours
€2.55 / pcs
SKU: RV0FLI320
D: 32 mm
PN: 10 Bar
Ships in 24 hours
€3.03 / pcs
SKU: RV0FLI400
D: 40 mm
PN: 10 Bar
Ships in 24 hours
€4.43 / pcs
SKU: RV0FLI500
D: 50 mm
PN: 10 Bar
Ships in 24 hours
€4.63 / pcs
SKU: RV0FLI630
D: 63 mm
PN: 10 Bar
Ships in 24 hours
€5.38 / pcs
SKU: RV0FLI750
D: 75 mm
PN: 10 Bar
Ships in 24 hours
€7.33 / pcs
SKU: RV0FLI900
D: 90 mm
PN: 10 Bar
Ships in 24 hours
€8.52 / pcs
SKU: RV0FLI910
D: 110 mm
PN: 10 Bar
Ships in 24 hours
€10.35 / pcs
SKU: RV0FLI920
D: 125 mm
PN: 10 Bar
Ships in 24 hours
€14.05 / pcs
SKU: RV0FLI930
D: 140 mm
PN: 10 Bar
Ships in 24 hours
€16.20 / pcs
SKU: RV0FLI940
D: 160 mm
PN: 10 Bar
Ships in 24 hours
€20.01 / pcs
SKU: RV0FLI960
D: 200 mm
PN: 10 Bar
Ships in 24 hours
€40.69 / pcs
SKU: RV0FLI970
D: 225 mm
PN: 10 Bar
Ships in 24 hours
€46.52 / pcs
SKU: RV0FLI980
D: 250 mm
PN: 6 Bar
Ships in 24 hours
€89.87 / pcs
SKU: RV0FLI991
D: 315 mm
PN: 6 Bar
Ships in 24 hours
€190.80 / pcs
