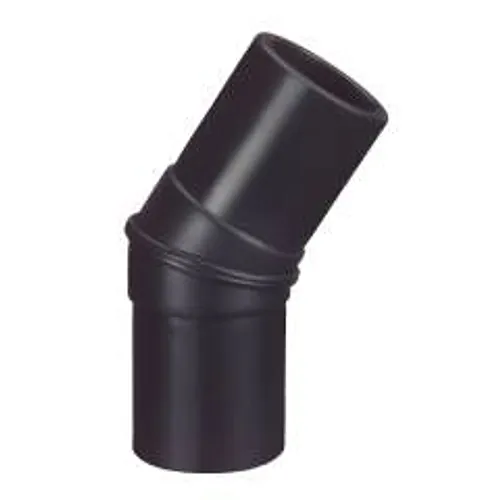

Elbow 30° PE100

GF Piping Systems ELGEF Plus 30° Elbow – PE100, SDR17, d90–d315 mm. Rated at 5 bar gas / 10 bar water, this long-version electrofusion elbow is manufactured from PE100 virgin resin, conforming to EN 12201 and EN 1555 standards. The welded design ensures a homogeneous, monolithic joint with full structural integrity across the deflection. Available in diameters d90 (DN80) through d315 (DN300), with wall thicknesses ranging from 5.4 mm to 18.7 mm and Lmax from 246 mm to 545 mm. Material properties: density ~0.95 g/cm³, tensile E-modulus 900 N/mm², Charpy impact strength 83 kJ/m² at 23°C. Certified under DVGW, KIWA, SVGW, and multiple marine classification societies including DNV-GL, Bureau Veritas, and Lloyd's Register. Compatible with standard electrofusion and butt fusion joining equipment per DVS 2207.
